Graphics & Video Boards

Available in a range of form factors, Abaco’s rugged solutions respond to your need for optimum performance and flexibility – and robust reliability.

Graphics & Video Boards

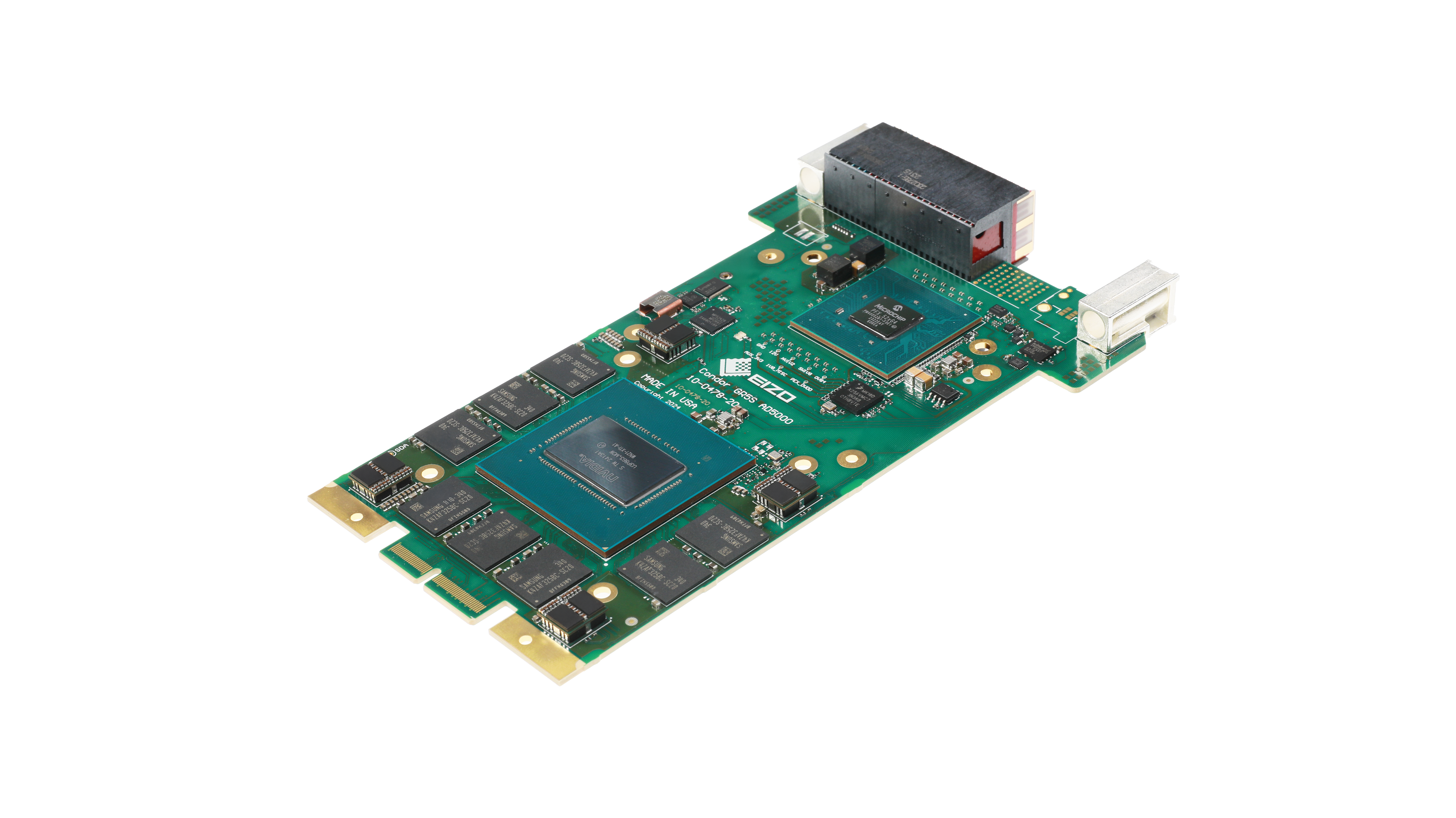

GRA117S

The SOSA- aligned GRA117S is a rugged 3U VPX video graphics and GPGPU processing card designed for demanding...

GRA116V

The GRA116V is a rugged 3U VPX GPGPU card designed for high-performance embedded computing (HPEC) in mission-critical...

GRA116S

The SOSA-aligned GRA116S high-performance compute engine and graphics/video processing card is based on the NVIDIA®...

IPN254

Rugged 6U VPX High Performance Computing Multiprocessor with NVIDIA Quadro Turing GPGPU and 9th Gen Intel Xeon E CPU.

GR5 3U VPX NVIDIA Quadro P2000 graphics, video and GPGPU board.

GR5

Leading Technology The Abaco GR5 is a 3U VPX rugged video/graphics and GPGPU card based on the NVIDIA® Pascal ™ Quadro®...

NVP2102

Leading Technology The Abaco NVP2102 is a chip-down 3U XMC graphics output and video capture board based on the NVIDIA®...

NVP2000

Leading Technology The Abaco NVP2000 is a chip-down 3U XMC graphics output and GPGPU card based on the NVIDIA® Pascal ™...

GR4

Leading Technology The Abaco GR4 is a 3U VPX video capture and processing card based on NVIDIA® Pascal ™ Quadro® P5000...

NVP2102A

Leading Technology The Abaco NVP2102A is a rugged XMC graphics and raw video capture card based on the NVIDIA® Pascal ™...

Product Name	Form Factor	Chip Set	I/O	Cooling	Conformal Coating	Extended Temperature Range
GRA117S	3U VPX	NVIDIA RTX5000 Ada Lovelace	Optional front display port	Air, Conduction	Yes	From -40° to +71°
GRA116V	3U VPX
GRA116S	3U VPX	NVIDIA Ampere A4500 GPU	2x DisplayPort outputs	Air, Conduction	Yes	From -40° to +75°
GRA116OP	3U VPX	NVIDIA Ampere A2000 GPU	4 options: x2 DisplayPort & x2 Single-Link DVI-D; x4 Single-Link DVI-D; x4 DisplayPort; x2 Single-Link DVI-D & x2 3G-SDI	Air, Conduction		From -40° to +85°C
IPN254	VPX 6U	NVIDIA Turing RTX3000 (TU106); 9th Generation Intel Xeon E CPU (E-2276ME)	DisplayPort, DVI, GPIO, SATA, Serial, USB	Air, Conduction		Yes
GRA115V	3U	NVIDIA QuadroRTX™ 3000 GPU	4x 3G-SDI inputs, 4x 3G-SDI outports, 1x DisplayPort output	Air, Conduction		From -40° to +75°
NPN244/NPN244S	VPX 6U	NVIDIA QuadroRTX™ 3000 GPU, NVIDIA QuadroRTX™ 5000 GPU	8x DisplayPort 1.2 output ports	Air, Conduction		From -40° to +85°C
NVP2009	XMC	NVIDIA Pascal GPU - Quadro P2000	Combinations of: 1x DisplayPort++, 4x 3G-SDI, 2x CVBS, 2x VGA	Air, Conduction		From -40° to +75°
GRA115Q	VPX 3U	NVIDIA QuadroRTX™ 3000 GPU, NVIDIA QuadroRTX™ 5000 GPU	2x DisplayPorts 1.4a outputs, 2x SL-SVI outputs, 4x SL-DVI outputs	Air, Conduction	Yes	From -40° to +85°C
GR5	VPX 3U	NVIDIA Pascal GPU - Quadro P2000	2x SL-DVI output ports, 2x DisplayPort 1.2 output ports	Air, Conduction	No	From -40° to +85°C
NVP2000	XMC	NVIDIA Pascal GPU - Quadro P2000	3x DisplayPort 1.4 outputs	Air, Conduction	No	Yes
NVP2102	XMC	NVIDIA Pascal GPU - Quadro P2000	4x 3G-SDI inputs, 2x DisplayPort outputs	Air, Conduction	No	Yes
NVP2102A	XMC	NVIDIA Pascal GPU - Quadro P2000	4x 3G-SDI inputs, 2x SL-DVI output ports, 2x CVBS (NTSC/PAL) inputs, 2x Audio inputs, 2x 3G-SDI outputs, 2x Rear DisplayPorts 1.4	Air, Conduction	No	Yes
GRA116SETH	3U VPX	NVIDIA Ampere A4500 GPU	x2 DisplayPort outputs (VITA 65 option)	Air, Conduction	Yes	From -40° to +75°
NVA2104AxX	XMC	NVIDIA RTX A2000	Four 3G-SDI and Two CVBS (NTSC/PAL) inputs, Four 3G-SD Rear outputs	Air, Conduction	Yes	From -40° to +85°C
NVP2000xPF	XMC	NVIDIA Pascal Quadro P2000	Front Panel: One Dual-Link DVI-D* & One DisplayPort++ Rear Pn4 PMC I/O: One Dual-Link DVI-D* & One Single-Link DVI-D	Air, Conduction	No	From -40° to +75°
NVA2000xX	XMC	NVIDIA Ampere RTX A2000	Front Panel: One Dual-Link DVI-D* & One DisplayPort++ Rear Pn4 PMC I/O: One Dual-Link DVI-D* & One Single-Link DVI-D	Air, Conduction	Yes	From -40° to +85°C
GRA117SVIO	3U	NVIDIA RTX2000 Ada Lovelace	4x) Up to 12G-SDI Inputs, (2x) Up to 12G-SDI Outputs	Conduction		From -40° to +85°C
NVA2102xX	XMC	NVIDIA Ampere RTX A2000	Four 3G-SDI video inputs and four DisplayPort++, VGA, and 3G-SDI outputs	Air, Conduction	Yes	From -40° to +85°C
NVA500	XMC	NVIDIA Ampere A500		Air, Conduction		From -40° to +85°C

Product Name	Description
GR2	Advanced Graphics and GPGPU Processing and GPU TechnologyThe Abaco GR2 is a 3U VPX graphics output…
GR4	Leading TechnologyThe Abaco GR4 is a 3U VPX video capture and processing card based on NVIDIA®…
ICS-8580 Video Compression Board	Video Streaming in a Rugged Unmanned Vehicle Environment The ICS-8580 is a standalone video frame…
XMCGA8 XMC graphics board	Delivers 2x performance/slot Whether you’re looking to upgrade an existing program or you’re…
G2 Graphics PMC Module	The G2 Graphics PMC Module provides powerful 3D graphics processing with ATI's popular Mobility…
G2 Riser Modules	G2 Riser Modules provide a convenient method of accessing all G2 Graphics PMC Display Outputs and…
GRA110	The GRA110 is the first graphics board to be announced in the 3U VPX form factor. Bringing desktop…
GRA111 Graphics Board	The OpenVPX-compatible GRA111 is the second generation 3U VPX graphics board, employing the NVIDIA…
GRA112 Graphics Board	Superior performance, small footprint For both video and graphics generation and general purpose…
GRA113 Graphics Boards	Doing more with less For both video and graphics generation and general purpose computing (GPGPU…
IPN250 Multiprocessor	High resolution mission critical data more rapidly The IPN250 combines NVIDIA’s GT240 96-core GPU…
IPN251 Intel/NVIDIA Multiprocessor	Performance, functionality in less space Provides more functionality within a constrained SWaP…
mCOM10-K1 Mini COM Express
NPN240 Multiprocessor	Harness GPGPU for rugged platforms Providing a highly computationally-dense platform, the NPN240…
Octegra3	The flexible video architecture of Octegra3 allows system designers to deliver multiple sensor…
P2-VIDEO	P2-Video, a general purpose CRT and LCD video graphics controller, provides a high-quality, high-…
PMC-7463	The PMC-7463 is a PMC-based DVI/SVGA video adapter. Ideal applications are cases where a high-end…
PMCCG1	The PMCCG1 graphics board is designed to meet the needs of a wide range of graphics applications…
PMCGA3	PMCGA3 is the latest in a family of market-leading graphics accelerator cards designed from…
PMCGA4	PMCGA4 is a market-leading graphics accelerator card designed from inception for the defense and…
PMC-VIDEOPLUS	The PMC-VIDEOPLUS high-resolution CRT video graphics controller for PMC supports a variety of SVGA…
SE1	The SE1 is a Pentium M based high-performance graphics card, biring the power of desktop gaming to…
SE2	The SE2 is a high performance graphics engine that combines the latest Intel Core 2 Duo processing…
Telum 2001-VGA	Telum 2001-VGA provides a high-quality, high-performance graphics adapter for an AdvancedMC…
VIM2 Mezzanine	Simultaneously capturing five video inputs and with advanced deinterlacing and scaling…
XMCGA6	Bringing desktop performance to the rugged market, the XMCGA6 represents a step change in…
XMCGA7 Mezzanine	High-performance graphics I/O solutions for embedded video and display applications Designed to…
