PMCGA4

P10 graphics processing unit

PMCGA4

This product reached the end of its lifecycle (end-of-life) on June 30, 2011

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.

Overview

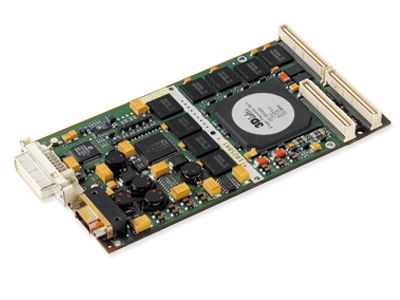

PMCGA4 is a market-leading graphics accelerator card designed from inception for the defense and aerospace markets. Using 3DLabs groundbreaking P10 Visual Processing Unit (VPU) at its core, it is capable of delivering the highest levels of performance in the rugged marketplace. PMCGA4 is a PCI mezzanine card (PMC) compatible with industrial standard PMC-P1386.1/Draft 2.1, and is available in four ruggedization levels to cater for applications in both benign and harsh environments. The conduction cooled level 4 product conforms to CCPMC Draft VITA 20-199X. The board is intended for both new programs and technology insertion for existing programs. It is pin compatible with legacy Radstone graphics PMCs, and is supported by the same range of high quality software drivers.

  • Air-cooled and rugged conduction-cooled variants
  • DVI 1.0 digital video output
  • RS-170, NTSC & PAL video input and output
  • VESA output resolutions to 1600x1200
  • Two independent output channels
  • 128 Mbytes SDRAM
  • 3DLabs Visual Processing Architecture
  • Leading OpenGL performance
  • Proven software drivers
  • For Ruggedization Levels, please see the configuration guide under the downloads tab

Specifications

Form Factor
PMC
I/O
Video/TV
Cooling
Air, Conduction
Chip Set
3DLabs P10 VPU
Conformal Coating
Option
Extended Temperature Range
Yes
