GRA115V

NVIDIA Quadro Turing RTX3000 Video Capture, Processing, Graphics Output and GPGPU Board with 3G-SDI, DP1.4a / DVI and Analog I/O
GRA115v

Overview

Leading Technology

The Abaco GRA115V is a 3U VPX video capture and processing card based on NVIDIA® Turing ™  architecture with the latest  Quadro RTX™ 3000 GPU. The GRA115V offers very high performance graphics and GPGPU capability – up to 5.3 TFLOPS floating-point - with CUDA™ and OpenCL™ support.

High Performance Applications

Designed for the highest performance video capture applications such as ISR, C4ISR, situational awareness and remote sensing/analysis, the GRA115V supports four 3G-SDI (or HD-SDI) video inputs and outputs with support for the full HD resolution of 1080p @60Hz.

AXIS Software Toolkit

AXIS ImageFlex is an image processing and visualization toolkit enabling rapid development of high performance image processing, visualization and autonomy applications aimed at size, weight and power (SWaP) sensitive platforms. It is focused on high performance GPU processing and graphics with interoperability with other programming paradigms such as OpenGL® 4.6, OpenCL™ 1.2, CUDA and OpenCV.



GPGPU

For the most demanding applications in SWaP-constrained platforms, you can benefit from Abaco being NVIDIA’s preferred provider of GPU technology into harsh environments.

More Details

Specifications

Chip Set:
NVIDIA QuadroRTX™ 3000 GPU
Environmental
MIL-STD-810G
Form Factor
3U
I/O
4x 3G-SDI inputs, 4x 3G-SDI outports, 1x DisplayPort output
Operating System (OS) Support
NVIDIA CUDA, OpenCL, OpenGL, Windows 10
Ruggedization
Conduction Cooled
Video Input
SD/HD-SDI
Video Output
SD/HD-SDI

SWaP

Minimizing size, weight and power is one of the biggest challenges our customers face. That’s why we prioritize it in all our product designs.

More Details

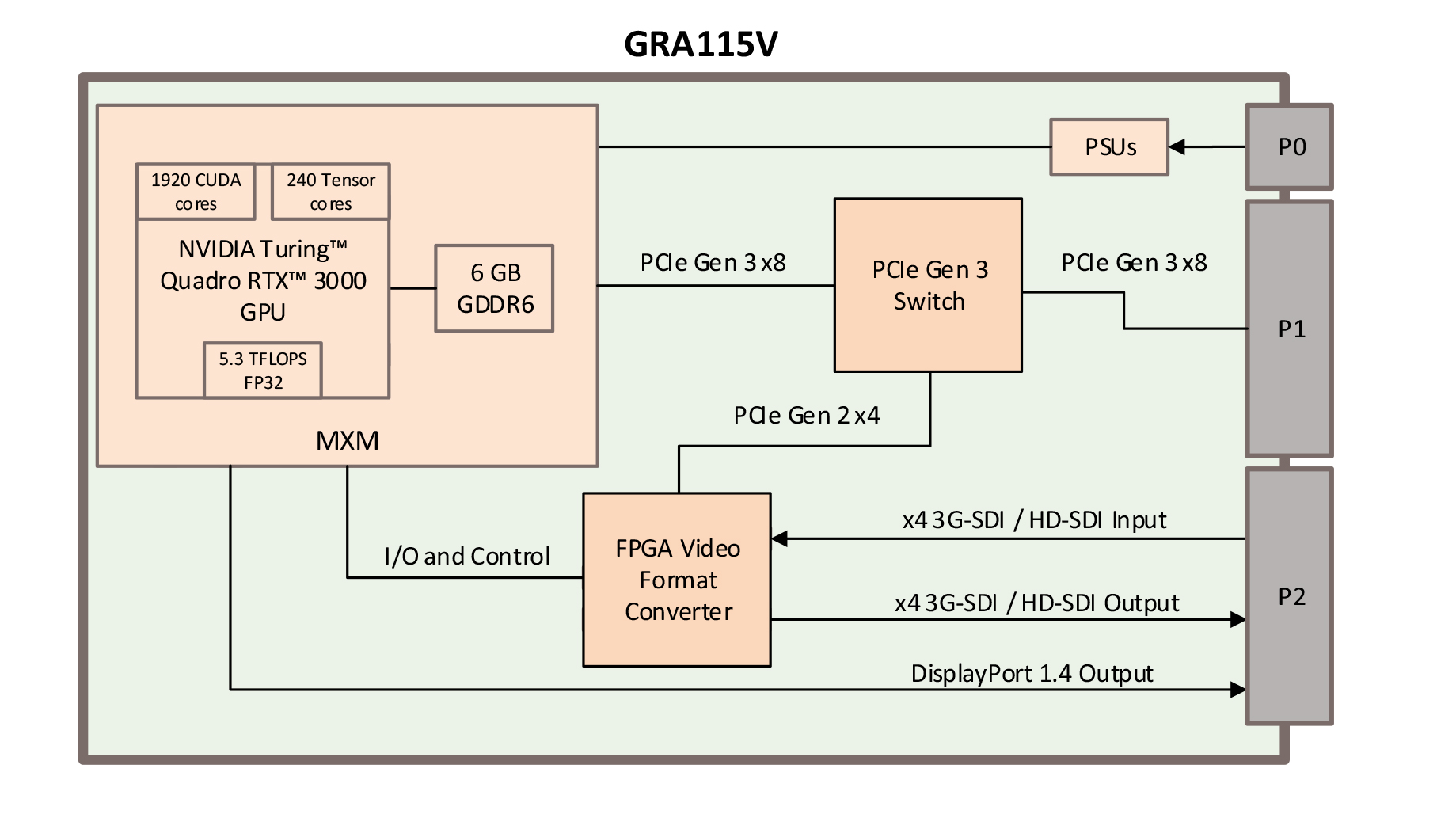

Block Diagram
