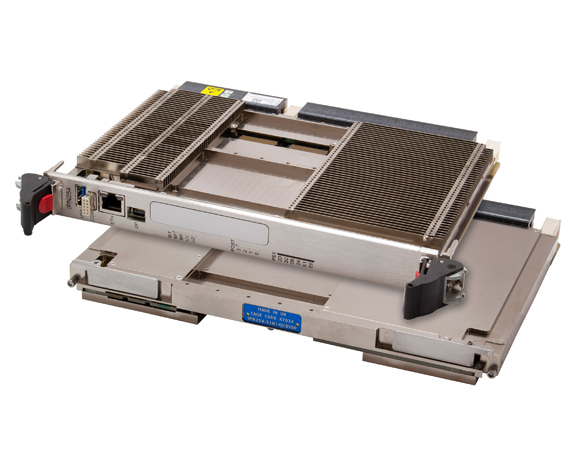

IPN254

6U OpenVPX Multiprocessor aligned with SOSA Standard
IPN254

Overview

Maximum processing and rugged by design

The IPN254 innovates by combining the latest NVIDIA® Quadro RTX™ 3000 GPU (5.3 TFLOPs peak performance (FP32) with the latest 9th generation Intel® Xeon® E CPU, delivering maximum processing performance from a rugged, single 6U OpenVPX slot.

Blending the best

This combination of GPU and CPU compute power translates into doing more with less, providing the ability to deliver more performance and throughput within the same SWaP envelope. This can lead to lower cost and to lower overall system/platform SWaP-C. The IPN254 features the latest DisplayPort™ 1.4 outputs, capable of 4K @ 120 Hz or even 5K @ 60 Hz, providing support for the latest display standards. By providing a dual 40 GbE data plane, the IPN254 is able to move unprecedented amounts of data within the multiprocessor as well as around the wider IPN254 ecosystem.

SOSA alignment, technology insertion

As well as providing alignment with the SOSA™ Technical Standard, an alternative version of the IPN254 provides a form/fit/function-compatible technology insertion solution for IPN252 users, delivering higher performance at minimal cost and with minimal system disruption.

Advanced security capabilities

The IPN254 also features the innovative Xilinx® Zynq® UltraScale+™ FPGA with advanced security capabilities such as encryption, physically un-clonable functions (PUF) and Zeroization to help keep customer applications and missions secure.





GPGPU

For the most demanding applications in SWaP-constrained platforms, you can benefit from Abaco being NVIDIA’s preferred provider of GPU technology into harsh environments.

More Details

Specifications

Application
Video & Graphics
AXIS Support
Yes
Chip Set:
NVIDIA Turing RTX3000 (TU106); 9th Generation Intel Xeon E CPU (E-2276ME)
Cooling
Air, Conduction
Extended Temperature Range
Yes
Form Factor
VPX 6U
FPGA Family
Zynq Ultrascale+
I/O
DisplayPort, DVI, GPIO, SATA, Serial, USB
Mezzanine
None
Operating System (OS) Support
Linux, Windows
Other
Designed to align to the SOSA standard, 64 GB DDR4 with ECC, 32 MB Flash, up to 256 GB SSD (NVMe), Security FPGA
Ruggedization
Extended temperature, Rugged Air Cooled and Conduction Cooled
Software
AXIS ImageFlex, AXIS EventView

High Performance Embedded Computing

Combining open systems architectures with leading commercial and GPGPU processors delivers the performance, scalability and interoperability your most demanding applications need.

More Details

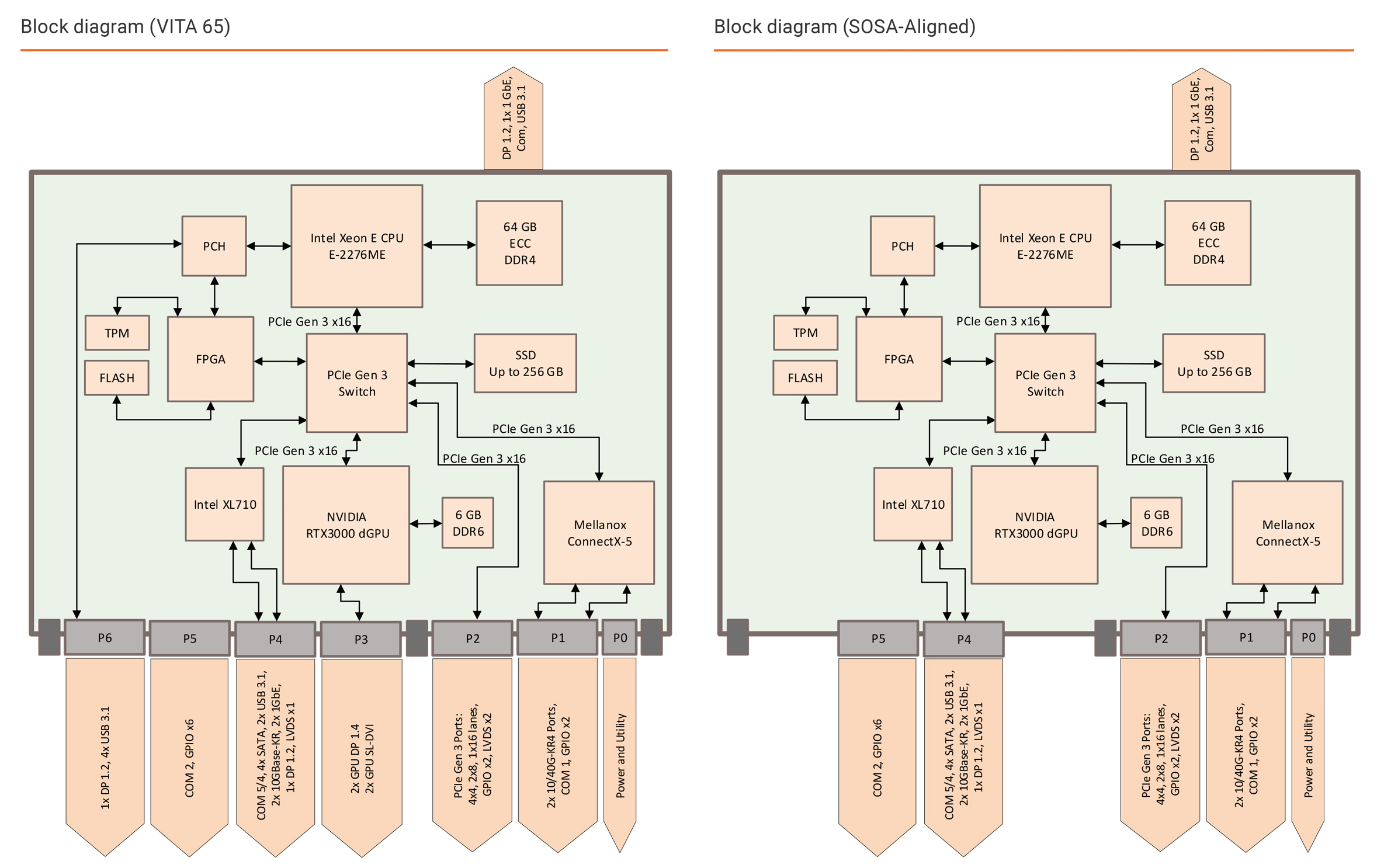

Block Diagram
