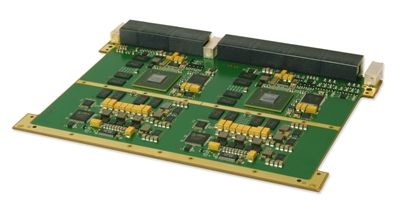

NPN240 Multiprocessor

6U OpenVPX multiprocessor with two NVIDIA® GT240 GPUs

NPN240 Multiprocessor

This product reached the end of its lifecycle (end-of-life) on November 30, 2015

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.

Overview


Harness GPGPU for rugged platforms

Providing a highly computationally-dense platform, the NPN240 is ideal for demanding applications that are constrained in terms of size, weight and power. The rugged NPN240 is designed to deliver game-changing levels of performance in deployed applications that lend themselves to parallel processing such as radar, sonar, and signal- and sensor processing as well as state-of-the-art image, video and graphics. Typical applications include stream processing of high resolution images for deployed airborne surveillance.

Application development made simple by software

The NPN240 will be available with Abaco Systems’ AXISLib high performance VSIPL DSP and math libraries for maximum code portability, enabling programmers to target their algorithm at the CPU or the GPU to optimize system loading and performance. In addition to NVIDIA®’s CUDA™ environment, supported software includes Linux®, Windows®, Microsoft DirectX®, OpenCL, OpenGL and MATLAB®, together with NVIDIA’s PureVideo® Technology and PhysX™







OpenVPX Logo

OpenVPX Logo

Specifications

Form Factor
VPX 6U
Processor
Dual NVIDIA GT240 GPUs, 96-core
I/O
DVI, HDMI or DV1, VGA
Application
Video & Graphics
Cooling
Air, Conduction, Spray
Mezzanine
None
Chip Set
NVIDIA GT 240 CUDA-Capable GPU
Conformal Coating
Option
Ethernet
None
Extended Temperature Range
Yes
Operating System (OS) Support
Windows
AXIS Support
Yes
Fabric Interface
PCIe
Memory
2 GB
Ruggedization
Level 1-2 Air Cooled, Level 4 Rugged Conduction Cooled

Accessories

  • 6U 1" Pitch Rear Transition Module
  • 6U 1.6" Pitch Rear Transition Module Assembly
  • 6U 0.4" Pitch Blanking Plate
  • 1M PCI Express Cable
  • 50cm PCI Express Cable
  • FABRTMP1 - Fabric Rear Transition Module (RTM)
