MMS – ECMs

The I/O modules you need, configurable on a single card.

Product Name Category Function Technical Parameters Features
3508 MMS ECM, Interface Serial Interface RS-232 Async Converter 3 outputs, 5 inputs
3512 MMS ECM, Digital Digital I/O 8-bit Single Ended Digital I/O 3.3V output driver Selectable direction

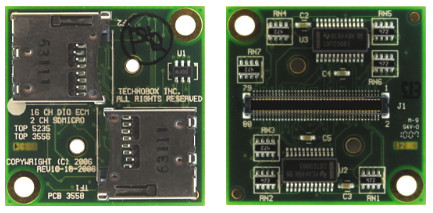

3556 MMS ECM, Memory Storage and I/O Dual MicroSD Memory 14-bit DIO at 5V or 3.3V
3560 MMS ECM, Interface Serial Interface I2C Converter 4 bi-directional channels
3564 MMS ECM, Analog Analog Interface Comparator High Common Mode 4 channel Common mode input range, -150V to 150V
5033 MMS ECM, Interface Serial Interface RS-485/422 Async Converter 8 bi-directional channels 110 Ohm termination, 20MB/s data rate or 250KB/s 'low EMI mode'
5041 MMS ECM, Interface Serial Interface RS-485/422 Async Converter 8 bi-directional channels 120 Ohm termination
5047 MMS ECM, Miscellaneous Utility Socket Saver and Debug All I/O breakout Provides breakout of ECM signals for debug and development
5081 MMS ECM, Analog Analog Conversion DAC 4 channel, 12-bit, 100KHz Software selectable output voltage ranges
5085 MMS ECM, Analog Analog Conversion ADC 2 channel, 24-bit, 500Hz Software selectable input voltage ranges

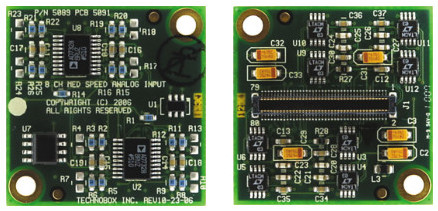

5089 MMS ECM, Analog Analog Conversion ADC 8 channel, 12-bit, 250KHz Differential or single ended input
5093 MMS ECM, Analog Analog Interface Power H Bridge 2 channel Used to drive one small stepper motor or two small dc motors
5147 MMS ECM, Analog Analog Conversion ADC 2 channel, 12-bit, 20MHz 120 Ohm termination, differential or single ended input

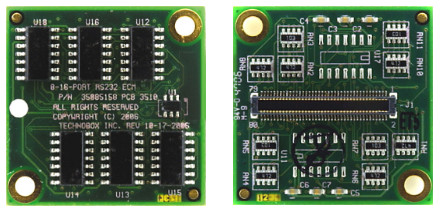

5158 MMS ECM, Interface Serial Interface RS-232 Async Converter 4 inputs, 4 outputs
5174 MMS ECM, Clock Clock Programmable Precision Clock 0 to 45Mhz, 0.028 Hz Onboard 10MHz VCO
5181 MMS ECM, Audio Audio Dual Stereo Codec 2 line level in/out Capacitor coupled, band pass filtered with cutoff at 2.6Hz and 1.36MHz
5188 MMS ECM, Analog Analog Interface Cross Point Switch 250MHz bandwidth, -3.75 to 3.75V range 8 inputs can be connected up to 8 outputs in any configuration

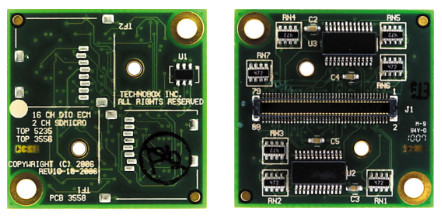

5235 MMS ECM, Digital Digital I/O 16-bit Single Ended Digital I/O 3.0V to 5.0V operation I/O FET buffered
5362 MMS ECM, Interface Digital I/O 8-bit LVDS Digital I/O Low Voltage Differential Signaling (LVDS) 100 ohm termination, 200MB/s
5658 MMS ECM, Analog Analog Conversion ADC Current Comparator 8 channel, 12-bit, 100KHz 0-25mA range, 100 ohm current sense resistor
5676 MMS ECM, Analog Analog Conversion ADC High Common Mode 8 channel, 16-bit, 100KHz 0-2.5 voltage range, 12.5KHz per channel (100/8)
7079 MMS ECM, Digital Digital I/O 16-bit Single Ended Digital I/O 5.0V high drive I/O parameters configurable with onboard CPLD
