Overview
Leading Technology
The GRA117SVIO is a ruggedized 3U OpenVPX video graphics and GPGPU card designed by EIZO Rugged Solutions Inc. It is powered by the NVIDIA RTX 2000 Ada Generation Embedded GPU, featuring 8 GB of GDDR6 graphics memory, 3,072 CUDA cores, 96 Tensor cores, and 24 RT cores. This card supports up to six 12G-SDI video streams, including four dedicated inputs and two dedicated outputs, making it ideal for high-performance computing systems that require real-time video capture and AI-accelerated data processing. The GRA117SVIO is aligned with the SOSA Technical Standard, ensuring interoperability with SOSA-aligned backplanes.
Designed for mission-critical applications, the GRA117SVIO integrates a 75-ohm NanoRF aperture with the Condor Video Engine, enabling direct SDI capture and output . It features PCI Express Gen 4 connectivity, offering high flexibility and ultra-fast data transfer speeds. The card meets VITA 47.1 environmental specifications for temperature, shock, and vibration, making it suitable for rugged environments. This combination of advanced video capture capabilities and AI processing power enhances situational awareness in applications such as C5ISR.
GPGPU
For the most demanding applications in SWaP-constrained platforms, you can benefit from Abaco being NVIDIA’s preferred provider of GPU technology into harsh environments.
Specifications
SWaP
Minimizing size, weight and power is one of the biggest challenges our customers face. That’s why we prioritize it in all our product designs.

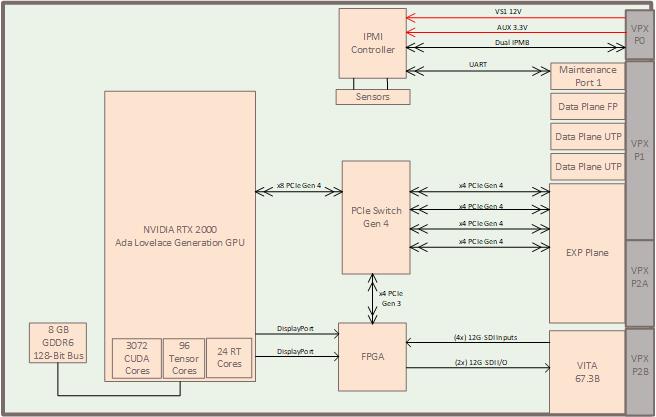

Block Diagram
Downloads
Datasheets
White Papers
Brochures
Request A Quote
GRA117SVIO
