GRA117S

SOSA-Aligned 3U VPX High Performance Graphics & GPGPU Card
GRA117S

Overview

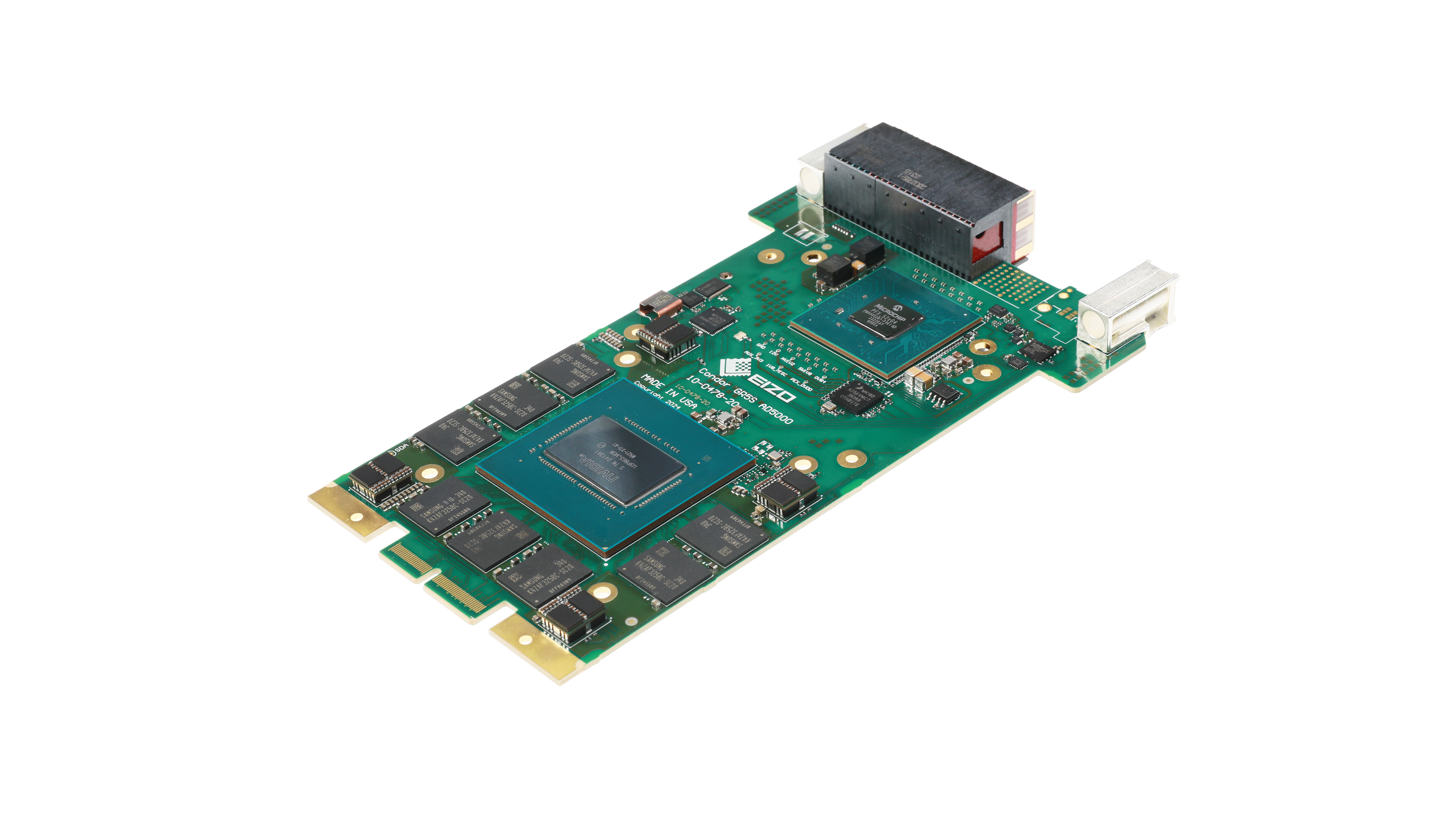

The SOSA- aligned GRA117S is a rugged 3U VPX video graphics and GPGPU processing card designed for demanding applications in military, avionics, and industrial environments. Powered by the NVIDIA RTX™ 5000 GPU based on the Ada Lovelace architecture, it offers exceptional performance with 16 GB of GDDR6 graphics memory equipped with error correction code (ECC), 9,728 CUDA® cores, 76 RT Cores, and 304 Tensor Cores . This card supports PCI Express Gen 4 connectivity, ensuring high-speed data transfer and efficient processing for data-intensive tasks.

The GRA117S supports AV1/H.265/H.264 video codec profiles and NVIDIA GPUDirect Remote Direct Memory Access (RDMA), which significantly reduces latency and improves bandwidth.

Software Support

Windows and Linux drivers are provided for x86 based platforms. The GRA117S also supports the NVIDIA software stack for the AD5000 GPU including the CUDA, CUDA-X, Open CL, H.264/H.265 etc.



Specifications

Form Factor
3U VPX
Temp Range
-40°C to 71°C at the base plate

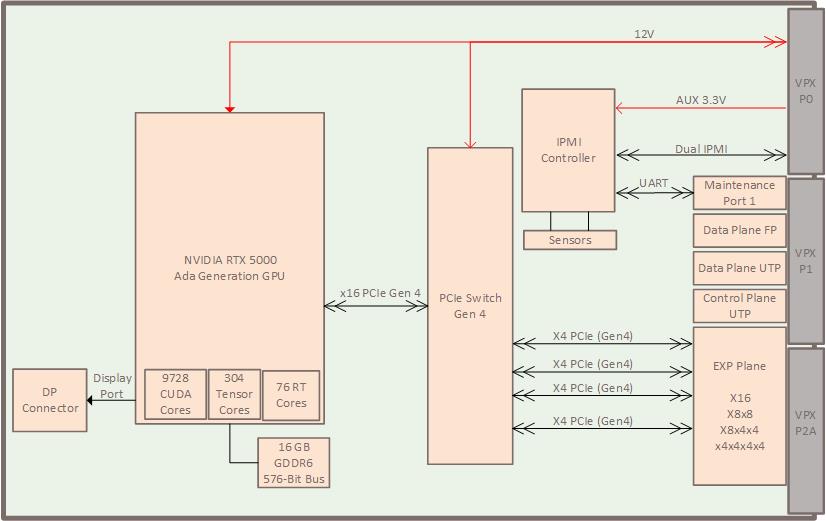

Block Diagram
