GR4

3U VPX High Performance Quad Channel Video Capture Board.

Overview


Leading Technology
The Abaco GR4 is a 3U VPX video capture and processing card based on NVIDIA® Pascal ™ Quadro® P5000/P3000 GPUs. The GR4 offers very high performance graphics and GPGPU capability – up to 6.4 TFLOPS floating-point - with CUDA™ and OpenCL™ support.



High Performance Applications
Designed for the highest performance video capture applications such as ISR, C4ISR, situational awareness and remote sensing/analysis, the GR4 supports four 3G-SDI (or HD-SDI) video inputs and outputs with support for the full HD resolution of 1,920x1,080 @60Hz. One DisplayPortTM output supporting 4K UHD is also available.



AXIS Software Toolkit
AXIS ImageFlex is an image processing and visualization toolkit enabling the rapid development of high performance image processing, visualization and autonomy applications aimed at size, weight and power (SWaP) sensitive platforms. It is focused on high performance GPU processing and graphics with interoperability with other programming paradigms such as OpenGL, OpenCLTM, CUDA and OpenCV.

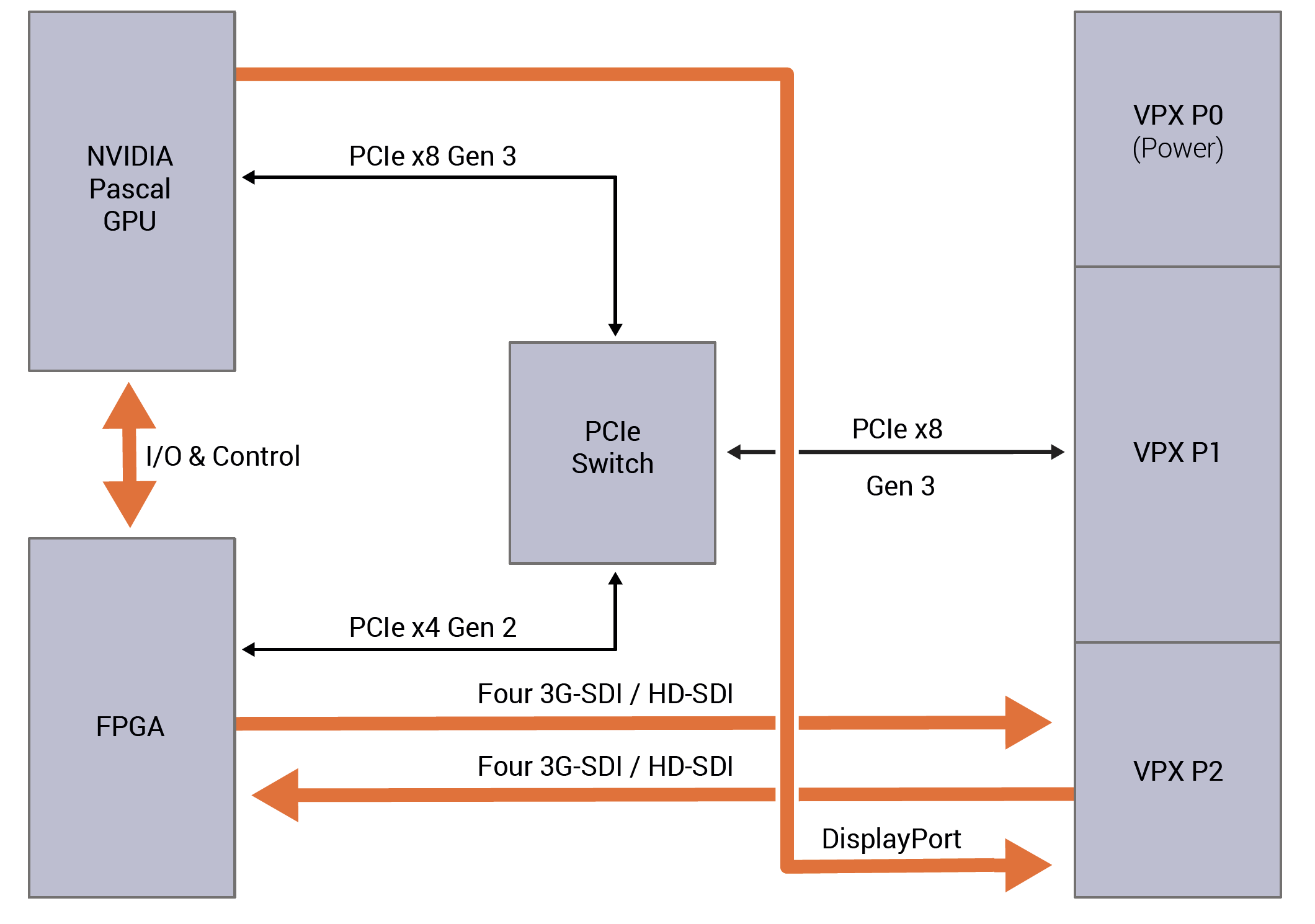

Block Diagram

Specifications

Form Factor
VPX 3U
I/O
4x 3G-SDI inputs, 4x 3G-SDI outports, 1x DisplayPort output
Cooling
Conduction
Chip Set
NVIDIA Pascal GPU – Quadro P5000/P3000
Conformal Coating
No
Extended Temperature Range
No
