NVP2102A

NVP2102A NVIDIA Quadro P2000 (GP107) XMC Graphics and Video Capture Board
NVP2102A XMC Graphics and GPGPU Card

Overview

Leading Technology

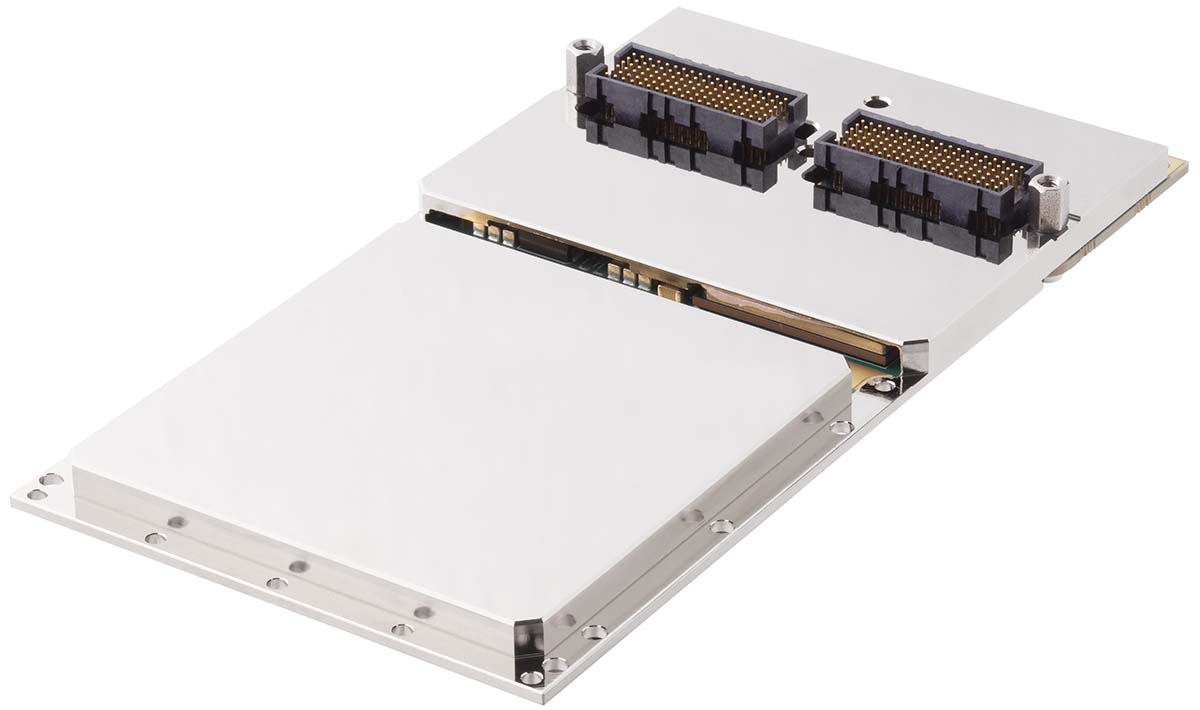

The Abaco NVP2102A is a rugged XMC graphics and raw video capture card based on the NVIDIA® Pascal ™ (GP107) Quadro® P2000 GPU architecture.

The NVP2102A leverages the high performance of the GPU with its 768 CUDA cores and 4GBytes of GDDR5 memory to deliver 2.3 TeraFLOPs of peak performance with CUDA™ and OpenCL™ support.

High Performance Applications
Target applications for the NVP2102A include those that require very high-end graphics capabilities or CUDA® support when performing general purpose processing, and that require raw video capture and display. It is ideal for GPGPU applications such as radar and video surveillance/analysis, situational awareness and signals intelligence. The NVP2102A makes it an optimum fit for GPGPU applications including machine learning and autonomy as well as offering additional support for legacy interfaces and peripherals.

The NVP2102A leverages the high performance of the GPU with its 768 CUDA cores and 4GBytes of GDDR5 memory to deliver 2.3 TeraFLOPs of peak performance with CUDA™ and OpenCL™ support.

Glass-to-Glass Latency
The NVP2102A supports direct video capture to GPU memory. This significantly reduces latency, minimizing glass-to-glass time – enabling the delivery of actionable information in closer to real time. The input resolution of incoming video is automatically detected and raw video frames are transferred directly to GPU memory (or host memory). In GPU memory, processing such as image analysis, image enhancement, 360-degree video stitching, sensor fusion, target detection and so on takes advantage of the extraordinary capabilities of NVIDIA GPGPU (CUDA/OpenCL™) technology to deliver output to the user far faster than would otherwise be possible.

AXIS Software Toolkit

The NVP2102A supports Abaco’s AXIS ImageFlex is an image processing and visualization toolkit enabling the rapid development of high performance image processing, visualization and autonomy applications aimed at size, weight and power (SWaP) sensitive platforms. It is focused on high performance GPU processing and graphics and is interoperable with other programming paradigms such as OpenGL, OpenCL, CUDA and OpenCV.







GPGPU

For the most demanding applications in SWaP-constrained platforms, you can benefit from Abaco being NVIDIA’s preferred provider of GPU technology into harsh environments.

More Details

Specifications

AXIS Support
Yes
Chip Set:
NVIDIA Pascal GPU - Quadro P2000
Conformal Coating
No
Cooling
Air, Conduction
Extended Temperature Range
Yes
Form Factor
3U, XMC
I/O
4x 3G-SDI inputs, 2x SL-DVI output ports, 2x CVBS (NTSC/PAL) inputs, 2x Audio inputs, 2x 3G-SDI outputs, 2x Rear DisplayPorts 1.4

Radar Solutions

Leading edge technologies coupled with extensive experience bring the products and expertise you need for advanced radar solutions.

More Details

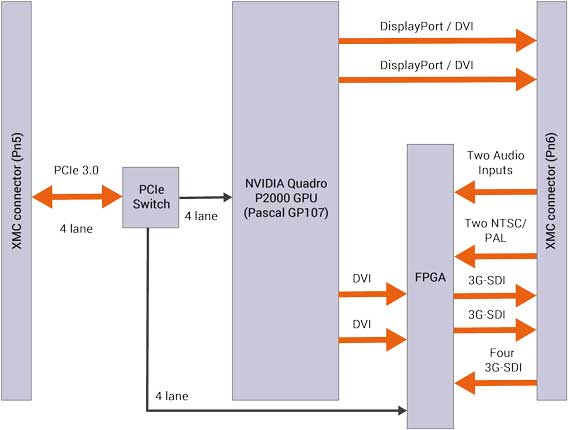

Block Diagram
