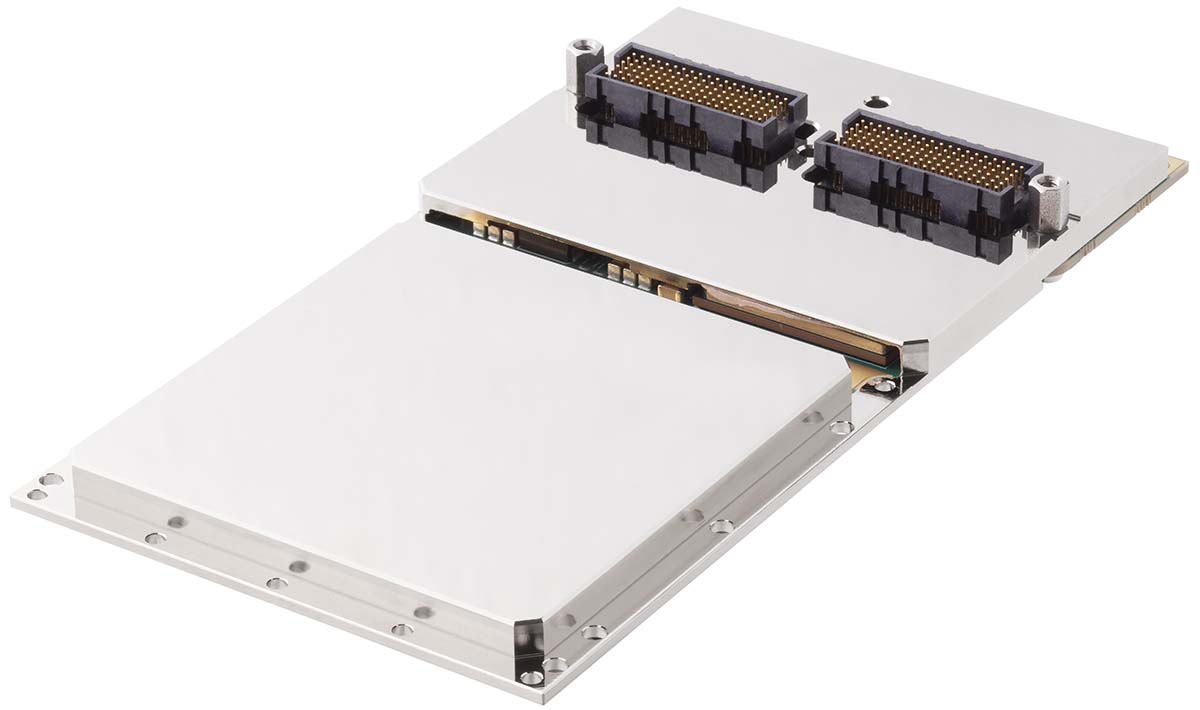

NVP2009

NVIDIA ® Quadro ® P2000 Based XMC Multi-standard Graphics Output and GPGPU Board

Overview

Leading Technology

As part of our NVIDIA Pascal™ based chip-down series of GPU XMC products the NVP2009 is ideal for GPGPU applications such as C5ISR, situational awareness, signal intelligence (SIGINT), as well as machine learning and autonomy.

Flexible

The NVP2009 supports four video outputs with customizable output combinations. This product is offered in Conduction Cooled or Air Cooled form factors with rear XMC I/O on Pn6. The rear XMC pin-out is compatible with VPX systems that follow VITA 46.9 x12d+x8d+24s. 3G-SDI and DisplayPort video outputs are available for interfacing with modern digital equipment. The analog CVBS (NTSC/PAL/SECAM) and VGA (STANAG, RS-170, RS-343) video outputs can be configured to support single-ended or differential signaling. Supporting both types of signal types is critical for legacy interfaces and allows the incorporation of advance differential signaling to reduce noise in newly architected systems.

AXIS Software Toolkit

AXIS ImageFlex is an image processing and visualization toolkit enabling the rapid development of high performance image processing, visualization and autonomy applications aimed at size, weight and power (SWaP) sensitive platforms. It is focused on high performance GPU processing and graphics with interoperability with other programming paradigms such as OpenGL, OpenCL™, CUDA and OpenCV.



GPGPU

For the most demanding applications in SWaP-constrained platforms, you can benefit from Abaco being NVIDIA’s preferred provider of GPU technology into harsh environments.

More Details

Specifications

Application
Rugged, Video & Graphics
Chip Set:
NVIDIA Pascal GPU - Quadro P2000
Fabric Interface
PCIe
Form Factor
XMC
Operating System (OS) Support
Linux, NVIDIA CUDA, OpenCL, OpenGL, Windows 7, Windows 10
Ruggedization
Rugged Air Cooled and Conduction Cooled
Video Output
VGA

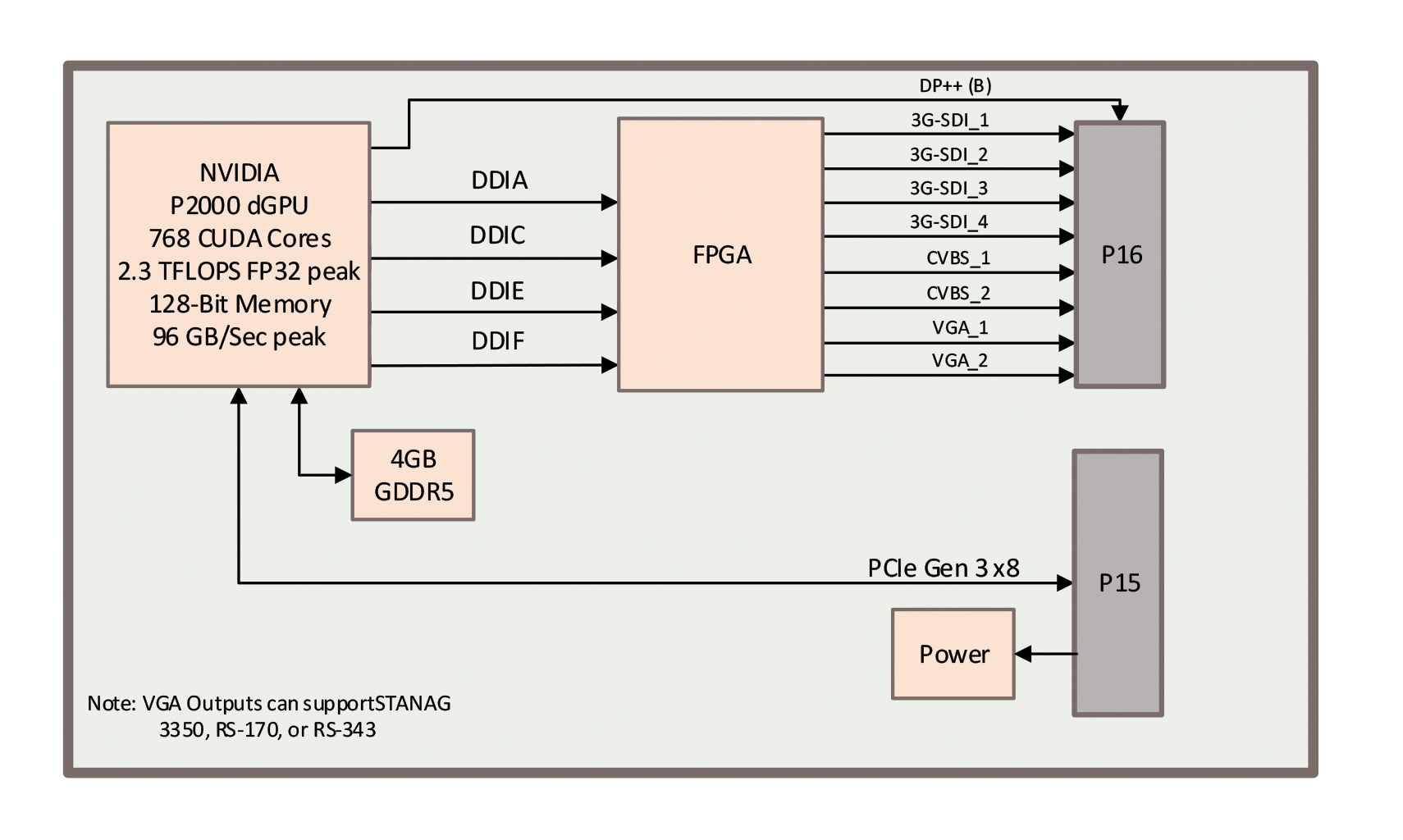

Block Diagram
