SBC324 3U VPX SBC
Single board computer featuring Intel® Core™ i7 processor
This product is no longer recommended for new designs.
Product configuration is currently frozen and no further design modifications are planned. We offer a comprehensive suite of Lifecycle Management services for existing customers. If you have any questions, please CONTACT US. To see all end of life products CLICK HERE.
We recommend the following alternative solutions:
Rugged single board computer featuring Intel’s latest ‘Kaby Lake’ processor.
Overview
More capability than previously possible
The SBC324, featuring a dual or quad core 2nd Generation Intel® Core™ i7 processor, brings superior processing performance as well as a range of other functionalities such as integrated graphics and memory controller, Intel’s AVX technology for demanding signal processing applications and second generation PCI Express™ for faster interconnect.
Expands capability through flexibility
The SBC324 offers a range of PCI Express backplane configurations and an XMC site with I/O, in addition to a comprehensive range of onboard I/O features and ample memory resources.
Choice of software and support
A rich software choice is available including comprehensive Deployed Test Software (BIT and BCS) plus operating system support for Windows® 7, Open Linux®, and VxWorks® and is designed to meet the requirements of a wide range of applications from industrial through to fully rugged defense and aerospace programs.

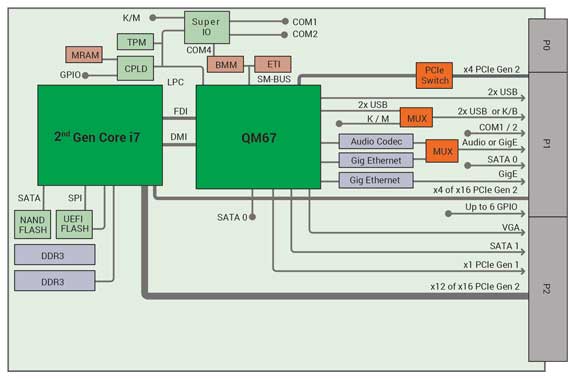

Block Diagram
