CRS-D4I-3VB1 COTS Rugged System

Conduction-cooled 3U VPX application-ready computer

CRS-D4I-3VB1 COTS Rugged System

Overview


Designed for a broad range of demanding application

4-slot, SWaP-reduced, rugged VPX Intel base plate cooled data processing system that can be applied across various applications including civilian and military unmanned vehicles, manned commercial and military aircraft, helicopters, over- and underwater research vessels, ground vehicles, and locomotives.

Pre-configured, pre-tested systems available on short lead times

The arduous task of integrating off-the-shelf boards has already been done – shortening time to project completion. Customers have one point of contact for all issues and a single part number – not a collection of parts.

The CRS-D4I-3VB1 successfully integrates Abaco Systems’ boards and modules, drawn from a wide selection of COTS solutions, into open modular systems that can be tested and qualified for rugged systems deployment. The CRS-D4I-3VB1 contains a fully integrated set of boards and modules designed to fulfill control and data processing applications.

Abaco Systems has integrated and tested the CRS-D4I-3VB1 and provides Board Support Packages (BSPs) and drivers that can easily be used to integrate the application and reduce software development cycle time.

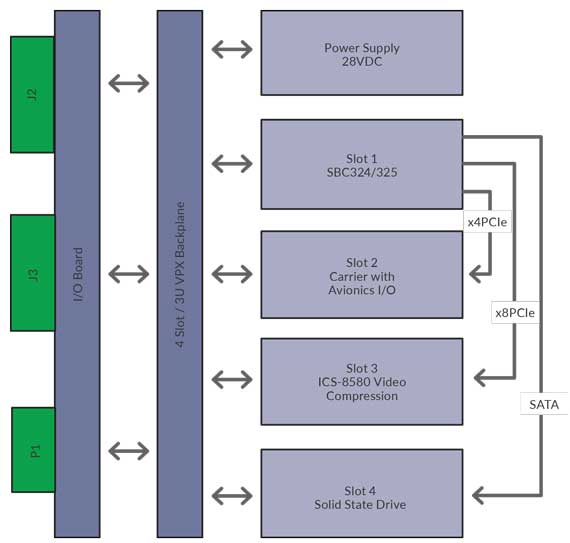

Block Diagram

Specifications

Form Factor
VPX 3U
Processor
2nd Gen. Intel Core i7
I/O
ARINC 429, Gigabit Ethernet, GPIO, RS232/422, USB, VGA
Cooling
Conduction
Slots
4
Operating System (OS) Support
Linux, Windows
Operating Temp
-40˚C to +71˚C
Weight lb (kg)
13.4 lbs (6.1kg)
