Powerful enough for anything. Small enough for anywhere.

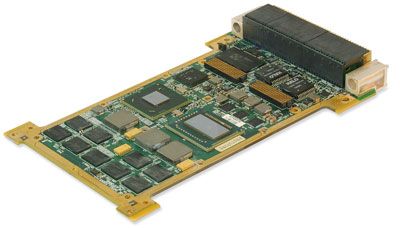

The SBC329 single board computer features Intel's latest technology.

Wherever you need big performance in small spaces.

Xeon E3 processor. 4 cores. 8 threads. 3.0GHz clock speed. 16 GB DDR4 memory. 3U.

Features

Processing

  • Intel Xeon E3-1505M or E3-1505L (Quad Core)
  • 25/45W base frequency, up to 4.0 GHz TurboBoost
  • 14 nm monolithic die processing technology
  • 8 MB Last Level Cache

Memory

  • Up to 16 GB DDR4 SDRAM soldered with ECC
  • 512 kB FRAM
  • Up to 32 GB on-board SSD
  • SPI Flash for BIT and BIOS

Security

  • SmartFusion2 FPGA with advanced security features
  • Enhanced Anti-Tamper Features - Zeroization

Software Support

  • Windows
  • Linux
  • VxWorks
  • AXIS
  • Deployed Test

Environmental

  • Convection, Conduction cooled
  • -40° to +85°C operation
  • 0.1g2/Hz vibration
  • 40g shock
imgnum - 0imgnum - 1imgnum - 2imgnum - 3imgnum - 4imgnum - 5imgnum - 6imgnum - 7imgnum - 8imgnum - 9imgnum - 10imgnum - 11imgnum - 12imgnum - 13imgnum - 14imgnum - 15imgnum - 16imgnum - 17imgnum - 18imgnum - 19imgnum - 20imgnum - 21imgnum - 22imgnum - 23

We’ve thought about the future so you don’t have to

Intel’s latest processor gives you longevity today – and an easy upgrade path tomorrow.

Rugged by design

-40°C to +85°C

Convection or conduction cooling

A single board computer that’s way cool

Our advanced heat management technologies mean ultimate performance with no throttling back.

Download White Paper

Helping you keep the bad guys at bay

Inbuilt security to help you safeguard the stuff that matters most.

Download White Paper

Specifications

Form Factor
VPX 3U
Processor
Intel Xeon E3-1505M, E3-1505L v6
# Expansion Slots
1
Maximum Memory
Up to 16 GB DDR4 SDRAM soldered with ECC
I/O
COM, Gigabit Ethernet, GPIO, HDMI or DV1, SATA, USB
Serial I/O
2
Mezzanine
1x XMC
Transition Modules
VPX3UX301, VPX3UX601
Chip Set
CM238
Other
Inherently secure FPGA solution; Supports Intel’s Trusted Execution Technology
Operating System (OS) Support
Linux, VxWorks, Windows
AXIS Support
Yes
Control Plane
1000BASE-T / 1000BASE-BX
Data Plane
PCIe
Management Plane
BMM (Baseboard Man. Module)
Ruggedization
Level 1-5 Air, Conduction Cooled
