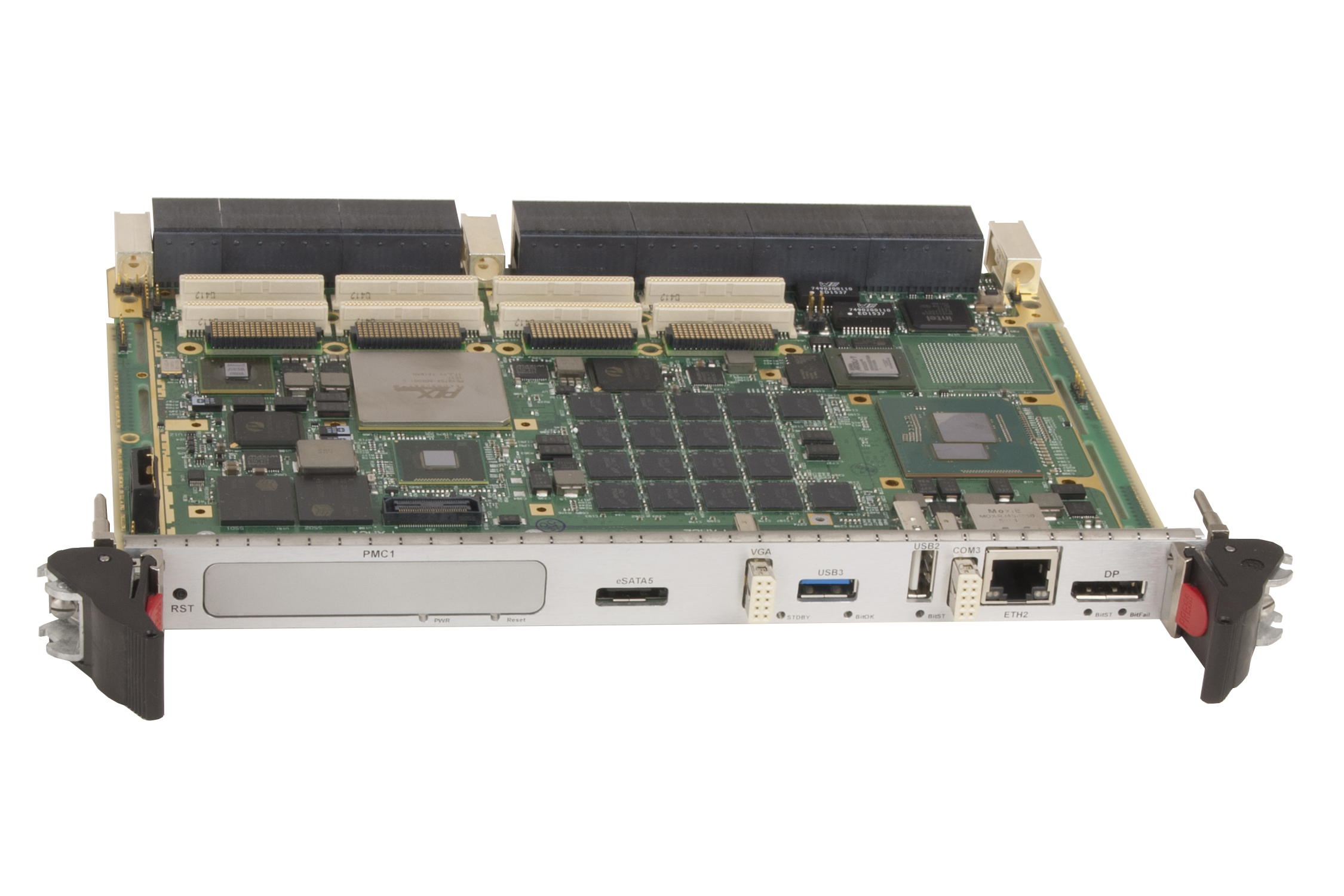

SBC627 6U OpenVPX SBC

Rugged single board computer featuring 5th Generation Intel® Core™ i7 processor
sbc627

Overview

Do more with less, and do it securely

The SBC627 rugged 6U VPX single board computer offers more processing power, more bandwidth, and more graphics capability – with no increase in the size, weight or power requirements of previous generations – enabling fewer system slots to be used. The FPGA combines a mix of passive and active features to allow customers to develop a robust on-board anti-tamper capability.

Offers easy, cost-effective upgrade path

Being form-, fit-, and function compatible with earlier models, the SBC627 provides a straightforward, cost-effective technology insertion opportunity empowering customer systems to benefit from the 5th generation Intel® Core™i7 processor.

Support for rich software choice provides flexibility

The SBC627 provides support for AXIS, Abaco Systems’ Advanced Multiprocessor Integrated Software development environment, which is designed to significantly reduce the complexity, time and cost of developing sophisticated applications. Also supported is comprehensive Deployed Test Software (FSP-enabled BIT, and BCS) plus operating system support for Microsoft Windows® 7, Open Linux® (Fedora), Red Hat® Enterprise Linux, Wind River® Linux, and VxWorks®. Examples and assistance are also available for integrating ‘chain of trust’ operation (from power-up to application start), plus Wind River’s FSP-enabled VxWorks Boot Loader, into system scenarios.













10 SBC questions to ask

Not all single board computers are created equal. Find out more about how your current supplier’s offering compares with Abaco’s.

GO TO QUESTIONS

Specifications

AXIS Support
Yes
Control Plane
1000BASE-T / 1000BASE-BX
Data Plane
40GbE
Expansion Plane
PCIe
Form Factor
VPX 6U
Management Plane
IPMI (Baseboard Man. Controller)
Maximum Memory
Up to 32 GB DDR3 SDRAM
Mezzanine
2x PMC/XMC
Other
Up to 64 GB (2x 32 GB) NAND Flash; a straightforward, cost-effective technology insertion opportunity
Processor
5th Gen. Intel Core i7 quad-core up to 2.7 GHz
Ruggedization
Level 1-5 Air, Conduction Cooled

High Performance Embedded Computing

Combining open systems architectures with leading commercial and GPGPU processors delivers the performance, scalability and interoperability your most demanding applications need.

More Details

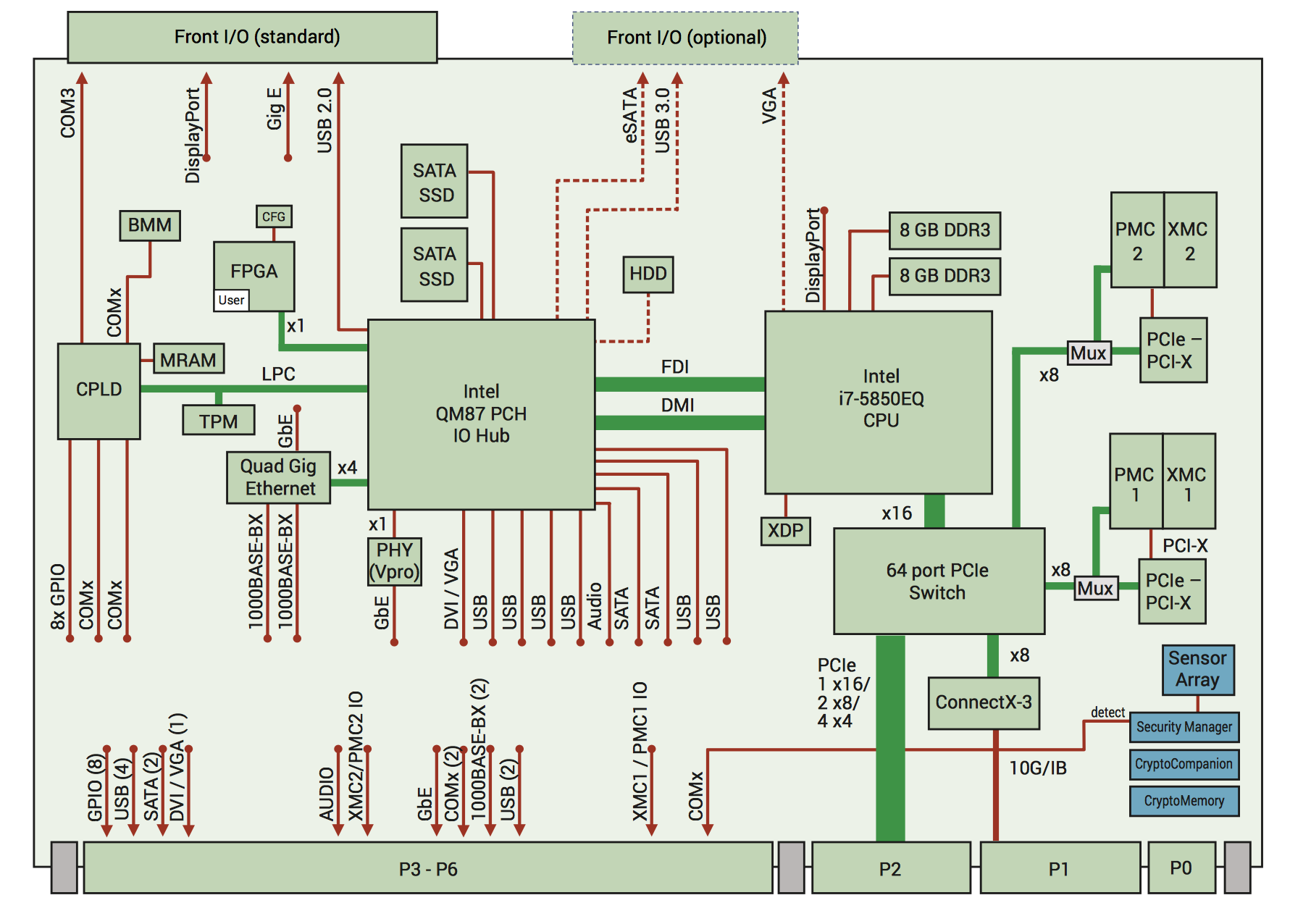

Block Diagram
