IBX400 6U OpenVPX VITA65 InfiniBand Switch Fabric Module

Bringing data center connectivity and performance to harsh environments
IBX400 6U OpenVPX VITA65 InfiniBand Switch Fabric Module

This product entered a Restricted Production Phase (RPP) on October 16, 2018

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

Overview

End to End OFED™ RDMA solution

High performance embedded computing (HPEC) solutions from Abaco Systems take advantage of software support from the HPC market. Abaco Systems’ end-to-end solutions provide shorter time to solution, lower technical risk and lower cost of ownership. System integrators and end users can deploy tried and tested software building blocks such as the Open Fabrics Enterprise Distribution (OFED) Remote Direct Memory Access (RDMA) and OpenMPI high performance interprocess communication (IPC) middleware from the OpenFabrics Alliance as well as modules from other open source HPC community projects.

Modular Open Systems Architecture (MOSA)

The IBX400 provides high speed data connectivity to Abaco Systems’ rugged MOSA board level solution sets that include the latest RDMA-enabled Intel Corei7 single board computers, multiprocessors, NVIDIA CUDA GPUs and PMC/XMC carrier cards. System integrators can move applications from Linux servers or desk-top machines onto these deployable modules to provide greatly increased computing performance where it is needed most - in the theater of operations.

Best in Class Performance

The dual fabric capability of the IBX400 delivers low latency, wire speed, Double Data Rate (DDR) InfiniBand data plane throughput at more than 3.7 GBytes/s bi-directional, as well as fully managed layer 2 and 3 Ethernet plane connectivity.



OpenWare

The industry’s most flexible, most customizable, most scalable network management software – with multi-level security and the fastest start-up time.

More Details

Specifications

AXIS Support
Yes
Fabric Interface
20 InfiniBand and 16 Ethernet
Form Factor
VPX 6U
Management Type
OpenWare & InfiniBand Subnet Manager
Mezzanine
None
Military Specifications
N/A
Network Operations
Fully Managed Ethernet Control Plane. In-band InfiniBand Subnet Mgmt.
Operating System (OS) Support
Linux, OpenWare Ethernet Switch Management
Port Type
InfiniBand & Ethernet
Ports
20 InfiniBand & 16 Ethernet
Ruggedization
Level 8 Air flow-through VITA 48.5
Software
OpenWare

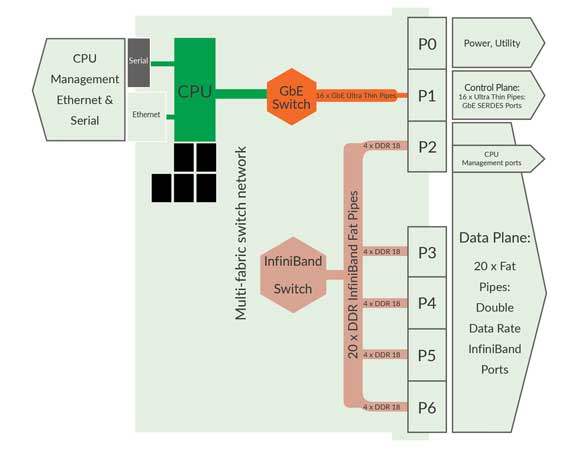

Block Diagram
