SCVPX6U-4

4-slot 6U VPX Starter Cage

SCVPX6U-4 6U VPX Starter Cage (4 slot)

Overview


Flexible, evaluation platform

The SCVPX6U-4 OpenVPX development chassis provides a flexible, cost-effective platform designed to support Abaco Systems' latest 6U OpenVPX modules. The platform is suitable for hardware and software evaluation plus higher levels of integration, test and demonstration. Abaco Systems’ range of circuit card assemblies (CCAs) are designed for use in a variety of convection, conduction and airflow-through module build styles. System integrators can develop and field-test this platform, secure in the knowledge that the same cards used in the laboratory and field demonstrations can be ordered in different build levels as required to meet the environmental requirements of a range of airborne, ground and naval platforms.

Four 6U OpenVPX slots

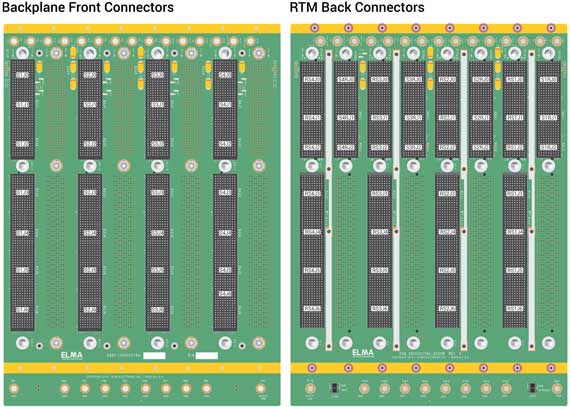

The SCVPX6U-4 comprises a 4-slot VPX backplane, card cage, PSU, cooling fans, provision for auxiliary storage and all internal power wiring.

Top to bottom cooling

Cooling is by pull-push convection, using fans at the top and bottom of the card cage. Front panel knob adjusts airflow.

Block Diagram

Specifications

Form Factor
VPX 6U
Slots
4
Fans
Top and Bottom
Power Supply
1200W
Rear I/O
Yes
Ruggedization
Commercial (benign)
