SBC612 SBC

6U VPX single board computer with QorIQ™ P4080 processor

SBC612 SBC

This product reached the end of its lifecycle (end-of-life) on May 25, 2018

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

We recommend the following alternative solutions:

Overview


8-core processing for maximum performance

  • 4x the cores – but with same power envelope as dual core
  • Provides straightforward, pin-compatible upgrade for SBC610
  • Broad software choice includes VxWorks­, LynxOS­, Linux­ and INTEGRITY­.

Designed for customers committed to the OpenVPX standard and preferring the Power Architecture™ supported by QoriQ™ processors, the 6U SBC612 delivers optimum performance/watt with the flexibility of a 4-core option for less demanding applications.

Flexibility to add features – but not slots

The SBC612 supports Abaco Systems’ AFIX (Additional Flexible Interface Xtension), a daughter card that allows the straightforward, cost-effective addition of off-the-shelf or customer-designed functionality without occupying a PMC/XMC site – potentially minimizing both slot count and SWaP.

Scalability through connectivity

Dual high speed fabric connectivity (Serial RapidIO­ and PCI Express™) enables a range of scalable solutions from single host to large multiprocessor systems. Connectivity options also include Gigabit Ethernet, fast serial COM ports, USB 2.0, SATA and GPIO, while two mezzanine sites offer significant configuration flexibility.

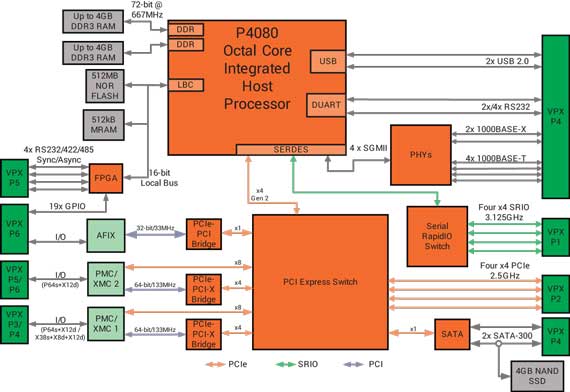

Block Diagram

Specifications

Form Factor
VPX 6U
Processor
QorIQ P4080 @ 1.5 GHz
# Expansion Slots
1
Maximum Memory
8 GB DDR3 SDRAM with ECC
Mezzanine
2x PMC/XMC
Other
SRIO
AXIS Support
Yes
Expansion Plane
PCIe
Control Plane
1000BASE-T / 1000BASE-BX
Data Plane
SRIO
Management Plane
BMC (Baseboard Man. Controller)
Ruggedization
Level 1-5 Air, Conduction Cooled

Accessories

VPX6UX602-111 - 6U VPX Rear Transition Module (RTM) with 0.8" pitch mechanics provides standard connectors, headers and interfaces the SBC610 and associated PMC/XMCs.

VPX6UX602-113 - 6U VPX Rear Transition Module (RTM) with 1" pitch mechanics provides standard connectors, headers and interfaces the SBC610 and associated PMC/XMCs.
