SBC326 3U OpenVPX Single Board Computer

Based on 4th Generation Intel® Core™ i7 technology
SBC326 3U OpenVPX Single Board Computer

This product entered a Restricted Production Phase (RPP) on February 11, 2021

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

We recommend the following alternative solutions:

Overview

Don’t compromise on performance

The VPXcel3 SBC326 single board computer delivers more performance with no increase in power or heat, minimizing the size, weight and power (SWaP) issues that characterize constrained environments such as manned- and unmanned vehicles. The SBC326 -- with up to 15% processor performance, enhanced graphics support, and improved security functionality -- is ready for deployment in command, control applications, as well as, in more demanding signal processing applications such as ISR, sonar and radar.

Upgrade to higher efficiency

The SBC326 is form-, fit- and function compatible with earlier models in the Abaco Systems SBC family, providing a straightforward, cost-effective technology insertion opportunity that enables current systems to benefit from Intel®'s 4th Generation Core™ i7 processors.

Let’s go to work

Typical applications for the SBC326 include command and control, ISR (intelligence, surveillance, reconnaissance), radar/sonar, EW (electronic warfare) and signal processing in confined environments such as unmanned vehicles. It is available in five build levels, from air-cooled for benign environments to fully rugged conduction-cooled for deployment in the harshest, most demanding environments.











10 SBC questions to ask

Not all single board computers are created equal. Find out more about how your current supplier’s offering compares with Abaco’s.

GO TO QUESTIONS

Specifications

AXIS Support
Yes
Control Plane
1000BASE-T / 1000BASE-BX
Data Plane
PCIe
Expansion Plane
PCIe
Form Factor
VPX 3U
Management Plane
BMM (Baseboard Man. Module)
Maximum Memory
Up to 16 GB DDR3 SDRAM
Mezzanine
1x XMC
Other
PCIe
Processor
4th Gen. Intel Core i7 quad-core up to 2.4 GHz
Ruggedization
Level 1-5 Air, Conduction Cooled

SWaP

Minimizing size, weight and power is one of the biggest challenges our customers face. That’s why we prioritize it in all our product designs.

More Details

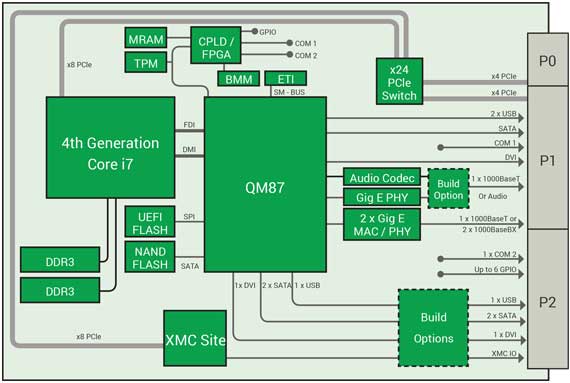

Block Diagram
