Take the lead in cognitive EW and radar.

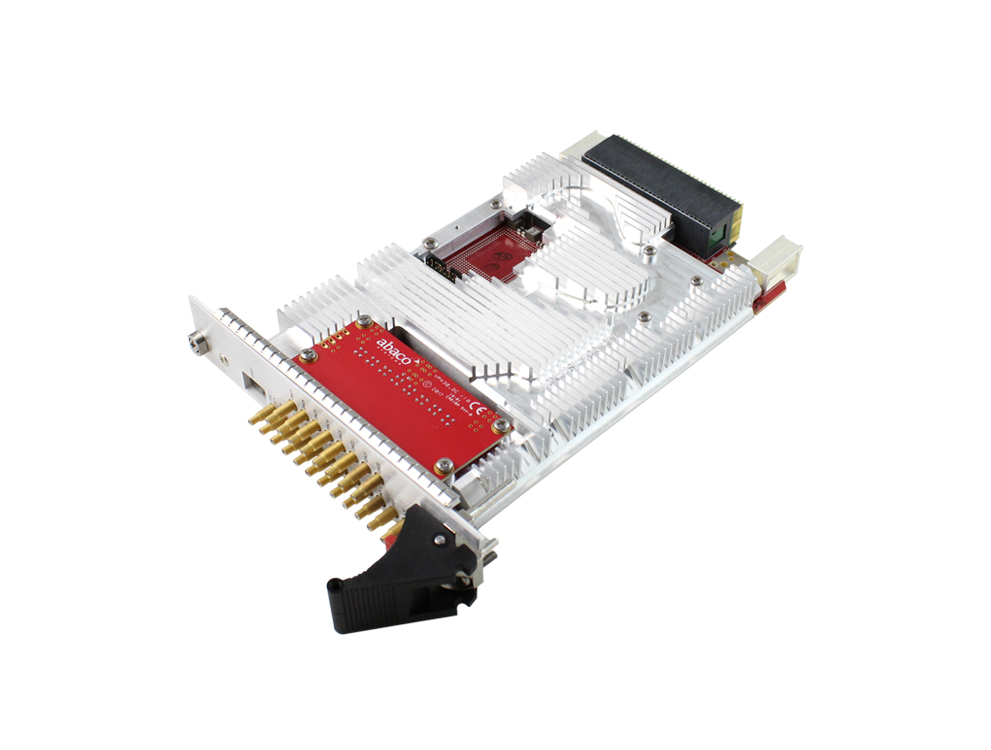

The VP430: direct RF processing system.

Reduce RF Signal Chain Complexity

Direct RF sampling implemented in the digital domain means more flexibility and less DUC/DDC.

Features

PROCESSING

  • Zynq Ultrascale+ RFSoC with integrated ADC, DAC, programmable logic and processing subsystems
  • DAC
  • Programmable logic and processing subsystems

MEMORY

  • 16GB DDR4

FLEXIBLE BACKPLANE OPTIONS

  • VITA 67.1 analog interface ports
  • VITA 66.4 optical interface via FireFly (optional)

COOLING OPTIONS

  • Air
  • Conduction cooling
imgnum - 0imgnum - 1imgnum - 2imgnum - 3imgnum - 4imgnum - 5

Maximize Input/Output Channel Density

Previous generations of technology would require four times as many boards for the same density and performance.

Operating Temp: (Level 1)

Slot Pitch: 0.8" (air cooled) or 1.0"

Form Factor: 3U VPX

Leverage a flexible, secure, processing powerhouse

The VP430 enables you to adapt as fast as new threats can emerge.

Solutions Brief    White Paper

Offload Data More Efficiently

Up to 12 GB/s transfer via FireFly enabling next gen radar and EW.

Specifications

Form Factor
VPX 3U
Cooling
Air, Conduction
Conformal Coating
Option
Data Rate
4000 Msps input, 6400 Msps output
Channels
8 Analog input, 8 Analog output
Operating System (OS) Support
Linux, VxWorks, Windows
Memory
16GB DDR4
Resolution
12-bit in, 14-bit out
FPGA Family
Zynq Ultrascale+ RFSoC
