VP431 RFSoC Board

Direct RF Processing System - Aligned to SOSA™ Standard
VP431 RF Processing System

Overview

Next Generation RF Processing System

VP431, the next generation of our first mover VP430 3U VPX commercial off-the-shelf, direct RF processing systems, now features the all new 3rd-generation Xilinx Radio Frequency System-On-Chip (RFSoC) Technology. The VP431 maximizes I/O channel density, reduces the radio frequency signal chain complexity, allows for heterogeneous processing capability.

Designed to Align with SOSA™ Technical Standard

The VP431 aligns to the Sensor Open Systems Architecture™ (SOSA) technical standard which enables the military to procure cost-effective tactical systems that can also be efficiently upgraded or repurposed.  Primes and integrators will see reduced platform time-to-market, resulting in faster revenue generation by having a menu of existing qualified solution sets that can be rapidly integrated.

Increased Performance in Less Space

The VP431 is a major step forward in performance and density, enabling the use of fewer boards with increased performance – thus minimizing SWaP - as well as the built-in ability to handle advanced MIMO, beamforming, and many military & aerospace, and commercial applications such as communications, sensor processing, radar, and electronic warfare.

3U VPX RF Processing System

The VP431 features the transformational 3rd generation Xilinx® Zynq® Ultrascale+™ RF system-on-chip (RFSoC). The ZU47DR device used on the VP431 includes eight integrated analog-to-digital converters sampling up to 5.0GSPS, eight digital-to-analog converters up to 10.0GSPS, a user programmable FPGA fabric, and multi-core Zynq ARM® processing subsystem.









Specifications

Application
Development, Lab, Simulation, Test, Rugged, Embedded
Channels
8 Analog input, 8 Analog output
Conformal Coating
Option
Cooling
Air, Conduction
Form Factor
VPX 3U
FPGA Family
Zynq Ultrascale+ RFSoC
Function
FPGA Baseband Processor, Transceiver (Analog Input & Output), Digital Communications
I/O
ADC, DAC, GPIO, LVDS
Operating System (OS) Support
Linux, VxWorks, Windows 10
Operating Temp
-40˚C to +70˚C
Port Type
1000BaseKX, 40GBASE-KR4, PCIe Gen3, 100Gbps Optical
Rear I/O
Yes
Resolution
14-bit
Ruggedization
Air cooled rugged, Conduction cooled rugged

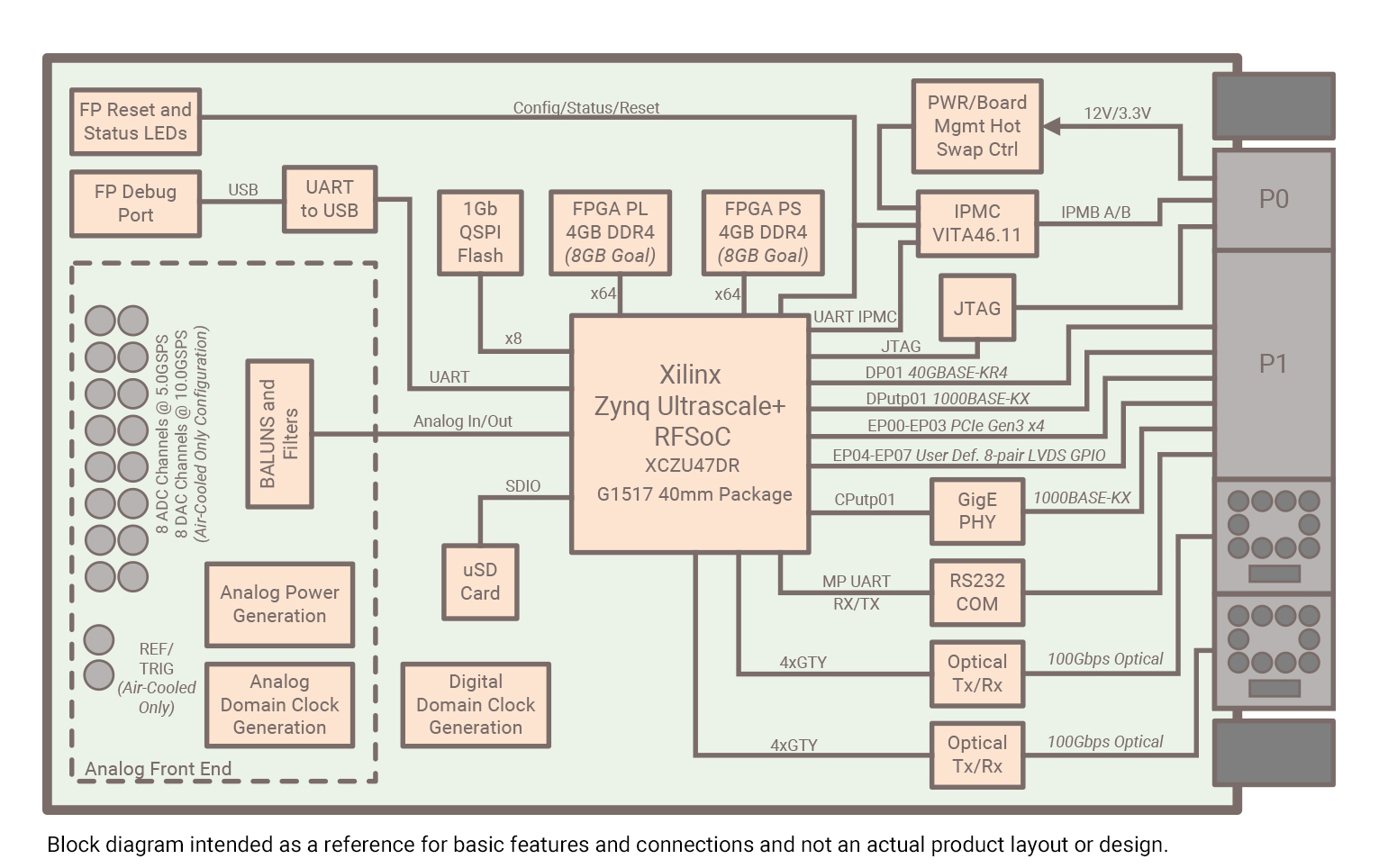

Block Diagram
