SBC312 SBC
3U VPX single board computer with 8-core QorIQ P4 processor
This product is no longer recommended for new designs.
Product configuration is currently frozen and no further design modifications are planned. We offer a comprehensive suite of Lifecycle Management services for existing customers. If you have any questions, please CONTACT US. To see all end of life products CLICK HERE.
We recommend the following alternative solutions:
SBC314 SBC
Rugged 3U VPX T2081/T1042-based SBC provides an essential pre-certification step with its support code for VxWorks653
Learn MoreOverview
8-core processing for optimum performance
The SBC312’s eight processor cores allows legacy applications to reduce multi-slot configurations to a single slot – making for smaller, lighter and more cost-effective systems. Based on the QorIQ P4080, the SBC312 provides outstanding flexibility to the system designer, with support for both symmetric and asymmetric multiprocessing architectures.
From simple to complex
The VITA65 OpenVPX-compatible SBC312 has dual high-speed fabric connectivity enabling a range of scalable solutions from single host to larger multiprocessor systems. Combined with an extensive and flexible range of I/O options, the SBC312 is deployable in a wide range of high performance embedded computing applications.
Software delivers flexibility, reliability and security
The SBC312 benefits from Abaco Systems’ broad software rollout including: P2P software (PCI Express peer-to-peer connectivity), VxWorks®, Linux®, and Wind River® Hypervisor support, and Integrity.

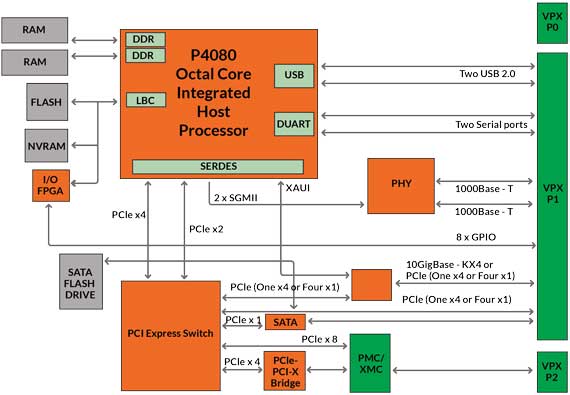

Block Diagram
Specifications
Downloads
Manuals
- 3U VPX SBC Software Reference Manual
- 3U VPX Single Board Computer Family Hardware Reference Manual
- Board Management Microcontroller Software Reference Manual
- Creating an Abaco BSP-based VxWorks Bootrom Application Note
- Creating an Abaco BSP-based VxWorks Kernel Image Application Note
- FBIT for SBC312 Software Reference Manual
- Linux Software Development Kit Software Reference Manual
- MEZZIOP0 Hardware Reference Manual
- MEZZIOXMC Hardware Reference Manual
- PMC Installation Guide
- Rapid Signal Processing Library Manual
- SBC312 Hardware Reference Manual
- U-Boot Firmware User Guide
- Vector, Signal, and Image Processing Library Software Reference Manual
- VPX I/O Modules Hardware Reference Manual
- VPX3UX300 Hardware Reference Manual
- VPX3UX300A Hardware Reference Manual
- VPX3UX600 RTM Hardware Reference Manual
- VPXtreme3 Family Quick Start Guide
- VxWorks 6.9 ESP for SBC312 HTML Pages
- VxWorks BSP for SBC312 HTML Pages
- VxWorks ESP for SBC312 HTML Pages
- VxWorks Peer to Peer PCIe Interconnect Feature Software Reference Manual
- Wind River Hypervisor for Abaco Power Architecture-based SBCs
- Workbench/Platforms/VxWorks6 BSP Installation on PowerPC-based SBCs Software Reference Manual
- Workbench/Platforms/VxWorks6 ESP Installation Software Reference Manual
