IMP3A

Rugged 3U CompactPCI QorIQ-based SBC

PowerPact3 IMP3A 3U CompactPCI Single Board Computer

Overview


System on chip (SoC) processor

The first Freescale QorIQ-based single board computer to join the PowerPact3 family of 3U CompactPCI processors, the IMP3A offers e500 cores built on Power Architecture’s 45 nanometer technology delivering unprecedented performance per watt, and enabling power-efficient designs.

When SWaP is critical to success

The IMP3A is designed for demanding, high performance computing applications where size-, weight-, and power constraints are non-negotiable. With the P2020 and P2010 processor options the IMP3A delivers unparalleled performance in a single slot solution.

Abaco Systems Rugged

Available in air- and conduction-cooled build levels for rugged computing, the IMP3A is fully supported by comprehensive Deployed Test Software (BIT and BCS) and support is available for popular operating systems including Open Embedded Linux and Wind River Linux.

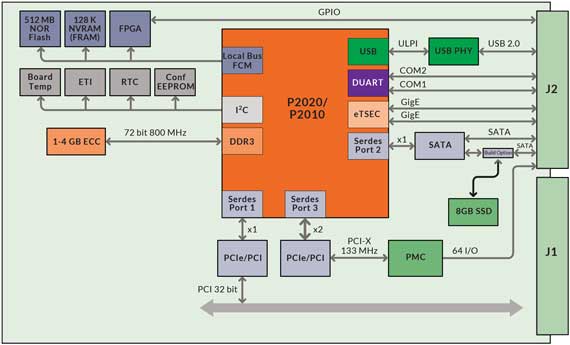

Block Diagram

Specifications

Form Factor
cPCI 3U
Processor
QorIQ P2020 @ 1.2 GHz
Maximum Memory
4 GB DDR3 SDRAM with ECC
Serial I/O
2
Mezzanine
1x PMC
Bus Interface Chip
Pericom PI7C9X110
Ethernet
Gigabit Ethernet
Other
AXISView & AXISFlow Support
System/ Peripheral
Both
Ruggedization
Level 1-5 Air, Conduction Cooled

Accessories

CPCI3UX606-11 - Module is a customized interface adapter, compatible with 3U CompactPCI backplanes. It fits directly onto the rear P2 position of the backplane and is suitable for interconnection with the PowerPact IMP3A host card.

IMP-IOKIT3 - I/O kit to support the IMP3A. Comprises of the following components:

  • 1x IMP3A Rear I/O paddle card (CPCI3UX606-11)
  • 1x 3U Serial I/O Panel with 2 x 9 Way D type connectors and 0.5 internal ribbon cable. For use with COM 1 and COM 2 port. (SIOX600-S)
  • 1x 2 way shielded 3U 10/100/1000BaseT Panel supplied with two 0.5m CAT5e shielded cables for use with all 10/100BaseT and 10/100/1000BaseT capable product (10BT2X600-STP)
  • 1x Type A USB2 plug to Type A USB2 socket panel mount x 2 on a 3U plate (USBX607-11)
