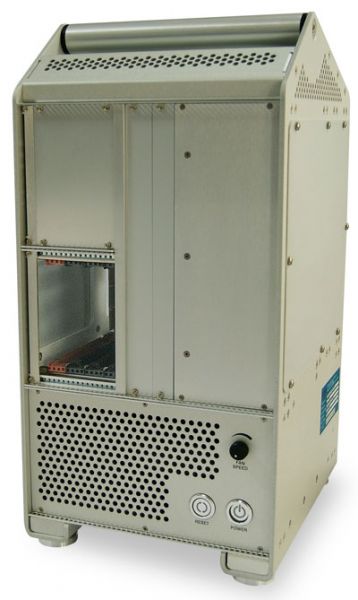

SCCPCI3U-4 3U CompactPCI Starter Cage

3U CompactPCI starter cage with 4-slot backplane
SCCPCI3U-4

Overview

Effective evaluation platform

The SCCPCI3U-4 CompactPCI development chassis provides a flexible, cost-effective platform designed to support Abaco Systems' latest 3U CPCI modules. The platform is suitable for hardware and software evaluation plus higher levels of integration, test and demonstration. Abaco Systems' range of development chassis allow system integrators to evaluate products in a laboratory environment, secure in the knowledge that the same cards can be ordered in different ruggedization levels to meet the demands of many deployed environments, from benign air cooled, to fully rugged conduction cooled.

PICMG 2.x compliant

The SCCPCI3U-4 comprises a 4-slot backplane, card cage, PSU, cooling fan, provision for auxiliary storage (including up to four IDE HDDs and two SATA devices) and all internal power wiring.



Specifications

Controller
Selectable
Fans
1
Form Factor
cPCI 3U
Hard Disk
Up to 4x external IDE HDDs
Height
7U
Power Supply
300W
Ruggedization
Level 1 Std. Air Cooled
Slots
4
