SBC340

Core Duo processor-based 3U VPX SBC. Implementing the 2.0 GHz T2500 Intel Core Duo processor architecture

SBC340

This product reached the end of its lifecycle (end-of-life) on December 31, 2013

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

We recommend the following alternative solutions:

Overview

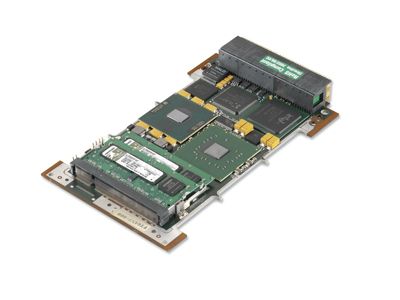

The SBC340 is a Core Duo processor-based VPXcel3 3U VPX single board computer. Implementing the 2.16 GHz T7400 Intel Core 2 Duo processor architecture, SBC340 brings high performance computing to the military and aerospace market. With a rich set of I/O, the SBC340 is a rugged computing PC aimed at processing, communications and display applications. The Intel 945GM Northbridge provides a dual-bank DDR SDRAM interface, as well as incorporating GMA 950 graphics capability. High-speed interfaces include Gigabit Ethernet, Hi-Speed USB 2.0, SATA and GPIO. The VPX form factor allows for high speed PCI Express connections to other cards in the system. SBC340 supports two PCI Express ports across the backplane.





  • 3U VPX SBC
  • Air- and conduction-cooled variants
  • Two PCI Express ports across the backplane
  • 2.16 GHz Intel Core 2 Duo
  • Up to 4 GB DDR2 SDRAM
  • Download our Ruggedization Levels guide (also available from the Downloads tab)





Specifications

Form Factor
VPX 3U
Processor
Intel Core 2 Duo @ 1.5 GHz
# Expansion Slots
0
Maximum Memory
Up to 4 GB DDR2 SDRAM
Expansion Plane
PCIe
Control Plane
1000BASE-T
Data Plane
PCIe
