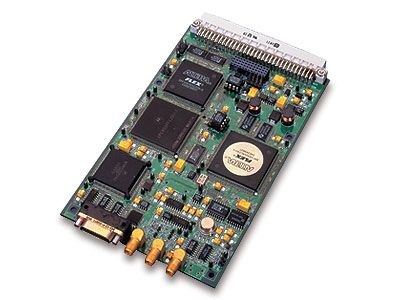

IMP20 Image Processing Module

Image fusion mezzanine card
IMP20 Image Processing Module

This product entered a Restricted Production Phase (RPP) on December 31, 2018

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

Overview

Makes working with multiple device input easier

The IMP20 video processing mezzanine card significantly increases the ease of acquiring and interpreting images from multiple sensors and cameras, thus speeding reaction time and potentially saving lives. The card adds image fusion capabilities to Abaco Systems’ ADEPT104 and AIM12 automatic video trackers, and allows the design of highly integrated, high performance graphics capabilities in any environment where the input from multiple devices needs to be combined in order to provide a complete, easy-to-interpret image.

Create a powerful image processing solution

When configured with the IMP20, Abaco Systems’ automatic video trackers provide a powerful system for detection, tracking, stabilization and fusion that delivers better performance than existing software-based solutions and can be used in harsher environments than other hardware-based solutions. The IMP20 offers intelligent, real-time, full-frame, multi-resolution image fusion which aims to maximize scene detail and contrast in the fused output, producing superior fused image quality with maximized information content.

The image fusion algorithm embedded into the IMP20 benefits from much faster execution times and reduced memory overheads, giving significantly improved results over the baseline weighted average algorithm while still performing in real time on live imagery. The unit’s built-in warp engine provides rotation, scaling and translation for each video source to compensate for image distortion and misalignment between the imagers, reducing the need for accurate matching of imagers.







Specifications

Control Interface
RS232/RS422
Form Factor
Mezzanine
Video Input
NTSC/RS170 and PAL/CCIR (50/60Hz)
Video Output
RS170/CCIR
