This product reached the end of its lifecycle (end-of-life) on August 30, 2013

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.

We recommend the following alternative solutions:

Overview

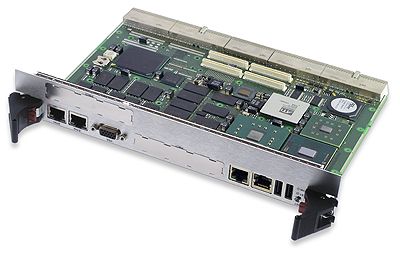

The CP11 provides a unique feature set, including up to 4 GB of DDR2 SDRAM (200 MHz) with enhanced ECC, four independent on-board PCI buses, system host and peripheral mode support for the CPCI backplane, two PMC interfaces (64-bit/133 MHz and 32-bit/33 MHz). Instead of the PMC1, a PCI Express based XMC interface is available on request. A high level of functional integration (two Gigabit Ethernet, one Fast Ethernet, two serial interfaces -- RS-232 or RS-422/485 -- USB 2.0, integrated HDD or Flash drive) gives users the freedom to use the PMC interfaces for their application specific I/O. The VGA/DVI interface provides high performance computing through its support of a 2D/3D ATI video controller capable of driving two displays in parallel.





  • Intel Core 2 Duo @ 2.16 GHz, Intel Core Duo @ 2.0 GHz
  • 2x PMC expansion site, with one XMC optional
  • Up to 4 GB DDR2 SDRAM w/ ECC
  • 2x Gigabit Ethernet





Intel ISA

Intel ISA

Specifications

Form Factor
cPCI 6U
Processor
Intel Core Duo @ 2.0 GHz
# Expansion Slots
2
Maximum Memory
4 GB DDR2 SDRAM with ECC
Serial I/O
2
Transition Modules
CTM17
Bus Interface Chip
PLX PCI6466
Ethernet
Gigabit Ethernet
System/ Peripheral
Both
Ruggedization
Level 1 Std. Air Cooled
