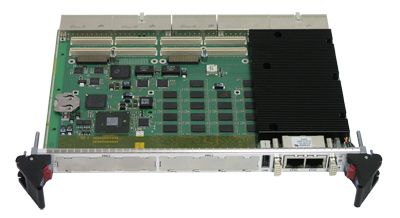

CT12 CompactPCI SBC

Intel Dual Core 6U CPCI Single Board Computer

CT12 CompactPCI SBC

This product reached the end of its lifecycle (end-of-life) on September 29, 2017

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.

We recommend the following alternative solutions:

Overview


Reliable form factor

Continuing the long and reliable service expected from the CompactPCI, PICMG 2.16-compliant form factor, the CT12 6U high performance CPCI single board computer based on Intel’s Core i7 processor technology brings high throughput, rugged computing and leading edge performance/watt to a broad range of applications including telecommunications, industrial control, test equipment, server blades, supervisor and monitoring systems, security and surveillance.

Reliable architecture

The CT12 is designed to deliver high performance computing with low power consumption and low heat dissipation. It is highly integrated, incorporating Northbridge components - memory controller, PCI Express for external graphics, integrated graphics and the DMI connector - which make it both faster and more compact. Its clock speed, dual core architecture and performance features allow applications to be executed more quickly - or allow more tasks to be executed concurrently. Using Turbo Boost technology, the CT12 can allow some applications to execute even faster. The CT12 is designed to allow upgrade to faster Intel Core processors as these become available.

Specifications

Form Factor
cPCI 6U
Processor
Intel Core i7 up to 2.53 GHz
Maximum Memory
8 GB DDR3 SDRAM with ECC
Serial I/O
3
Mezzanine
2x PMC/XMC
Transition Modules
CTM20
Bus Interface Chip
Intel QM57
Ethernet
Gigabit Ethernet
System/ Peripheral
Both
AXIS Support
Yes
Ruggedization
Extended temperature, Level 1 Std. Air Cooled

Accessories

CTM20A00A - Transition module with SATA HDD docking connector, no SATA drive

CTM20A00F - Transition module with SATA HDD docking connector, no SATA drive, extended temperature

CTM20A0MA - Transition module with SATA connector and 250 GB SATA drive and larger

CTM20A10A - Transition module with COM1, eSATA 3, onboard SATA 2/5 connector

CTM20A10F - Transition module with COM1, eSATA 3, onboard SATA 2/5 connector, extended temperature

CTM20A20A - Transition module with eSATA 2/3, onboard SATA 5 connector

CTM20A20F - Transition module with eSATA 2/3, onboard SATA 5 connector, extended temperature
