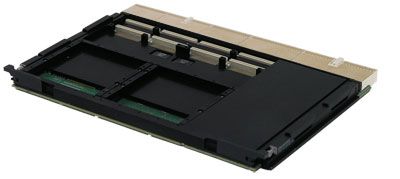

XCR14 CompactPCI SBC

Rugged 6U single board computer with 2nd Generation Intel Core i7 processor

XCR14 CompactPCI SBC

This product reached the end of its lifecycle (end-of-life) on September 29, 2017

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

We recommend the following alternative solutions:

Overview


Broadens performance for both past and present

The XCR14 6U CompactPCI rugged single board computer (SBC) utilizes the highly integrated 2nd Generation Intel Core i7 processor platform to help new programs achieve a balanced combination of throughput and cost for their application while minimizing the long term cost of ownership for customers by providing a straightforward, cost-effective upgrade path.



Ruggedization

The XCR14 is designed to meet the requirements of a wide range of applications from industrial through to fully rugged defense and aerospace programs. It offers extended temperature capability and a range of air- and conduction-cooled build levels.



A rich software choice

The XCR14 includes comprehensive Deployed Test Software (BIT and BCS) plus operating system support for Windows 7, Open Linux, Wind River Linux, and VxWork



Specifications

Form Factor
cPCI 6U
Processor
2nd Gen. Intel Core i7 dual/quad-core up to 2.5 GHz
Maximum Memory
Up to 16 GB DDR3 SDRAM
Serial I/O
3
Mezzanine
2x PMC/XMC
Transition Modules
CTM20, CTM22
Bus Interface Chip
Intel QM67
Ethernet
Gigabit Ethernet
System/ Peripheral
Both
AXIS Support
Yes
Ruggedization
Level 1-5 Air, Conduction Cooled

Accessories

EOL Notice: All CTM20 transition modules are replaced with CTM22 variants

CTM20A00A - Transition module with SATA HDD docking connector, no SATA drive

CTM20A00F - Transition module with SATA HDD docking connector, no SATA drive, extended temperature

CTM20A0MA - Transition module with SATA connector and 250 GB SATA drive and larger

CTM20A10A - Transition module with COM1, eSATA 3, onboard SATA 2/5 connector

CTM20A10F - Transition module with COM1, eSATA 3, onboard SATA 2/5 connector, extended temperature

CTM20A20A - Transition module with eSATA 2/3, onboard SATA 5 connector

CTM20A20F - Transition module with eSATA 2/3, onboard SATA 5 connector, extended temperature

CTM20A20A - Transition module with eSATA 2/3, onboard SATA 5 connector

CTM20A20F - Transition module with eSATA 2/3, onboard SATA 5 connector, extended temperature

CTM22A100 - Transition module with USB 2/3, COM1, VGA, display 1, eSATA 3, onboard SATA 5, Audio

CTM22A200 - Transition module with USB 2/3, VGA, display 1, eSATA 2/3, onboard SATA 5, Audio
