XCR15 CompactPCI SBC

6U CPCI single board computer with 3rd Generation Intel Core i7 processor

XCR15 CompactPCI SBC

This product entered a Restricted Production Phase (RPP) on July 26, 2019

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all Restricted Production Phase products CLICK HERE.


Broadens performance for both past and present

The XCR15 6U CompactPCI rugged single board computer (SBC) utilizes the highly integrated 3rd Generation Intel Core i7 processor platform to help new programs achieve the optimum combination of throughput and cost for their application while minimizing the long term cost of ownership for customers by providing a straightforward, cost-effective upgrade path.

What an Intel-based engine brings

Building the XCR15 around Intel’s 3rd Generation Core i7 processor allows Abaco Systems to offer integrated graphics and memory controller plus dual- and quad-core processing all in one device. In addition to up to 20% (compute) and 30% (3D graphics) performance improvement over the previous processor generation, the third generation technology also brings Advanced Vector Extensions (AVX) signal processing, intelligent performance on-demand with Intel Turbo Boost technology, PCIe Gen 3 (8 GT/sec) and USB 3.0 (10x the Bandwidth of 2.0) data transfer capability, and Hyper-Threading technology.


The XCR15 is designed to meet the requirements of a wide range of applications from industrial through to fully rugged defense and aerospace programs. It offers extended temperature capability and a range of air- and conduction-cooled build levels.

A rich software choice

The XCR15 includes comprehensive Deployed Test Software (BIT and BCS) plus operating system support for Windows 7, Open Linux, Wind River Linux, and VxWork

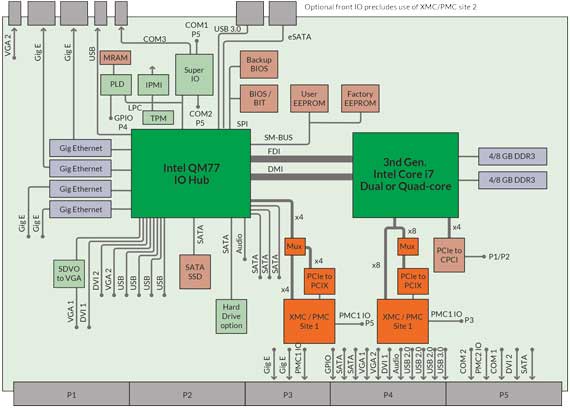

Block Diagram


Form Factor
3rd Gen. Intel Core i7 dual/quad-core up to 2.5 GHz
Maximum Memory
Up to 16 GB DDR3 SDRAM with ECC
Audio, DVI, Gigabit Ethernet, GPIO, SATA, Serial, SSD, USB, VGA
Serial I/O
Transition Modules
Bus Interface Chip
Intel QM77
Gigabit Ethernet
Operating System (OS) Support
Linux, VxWorks, Windows 7
System/ Peripheral
AXIS Support
Front I/O
Hard Disk
Rear I/O
Level 1-5 Air, Conduction Cooled


A last time buy has been issued for both versions of the CTM22 rear transition module. This last time buy opportunity will close on 26 July 2019.

CTM22A100 - Transition module with USB 2/3, COM1, VGA, display 1, eSATA 3, onboard SATA 5, Audio

CTM22A200 - Transition module with USB 2/3, VGA, display 1, eSATA 2/3, onboard SATA 5, Audio
