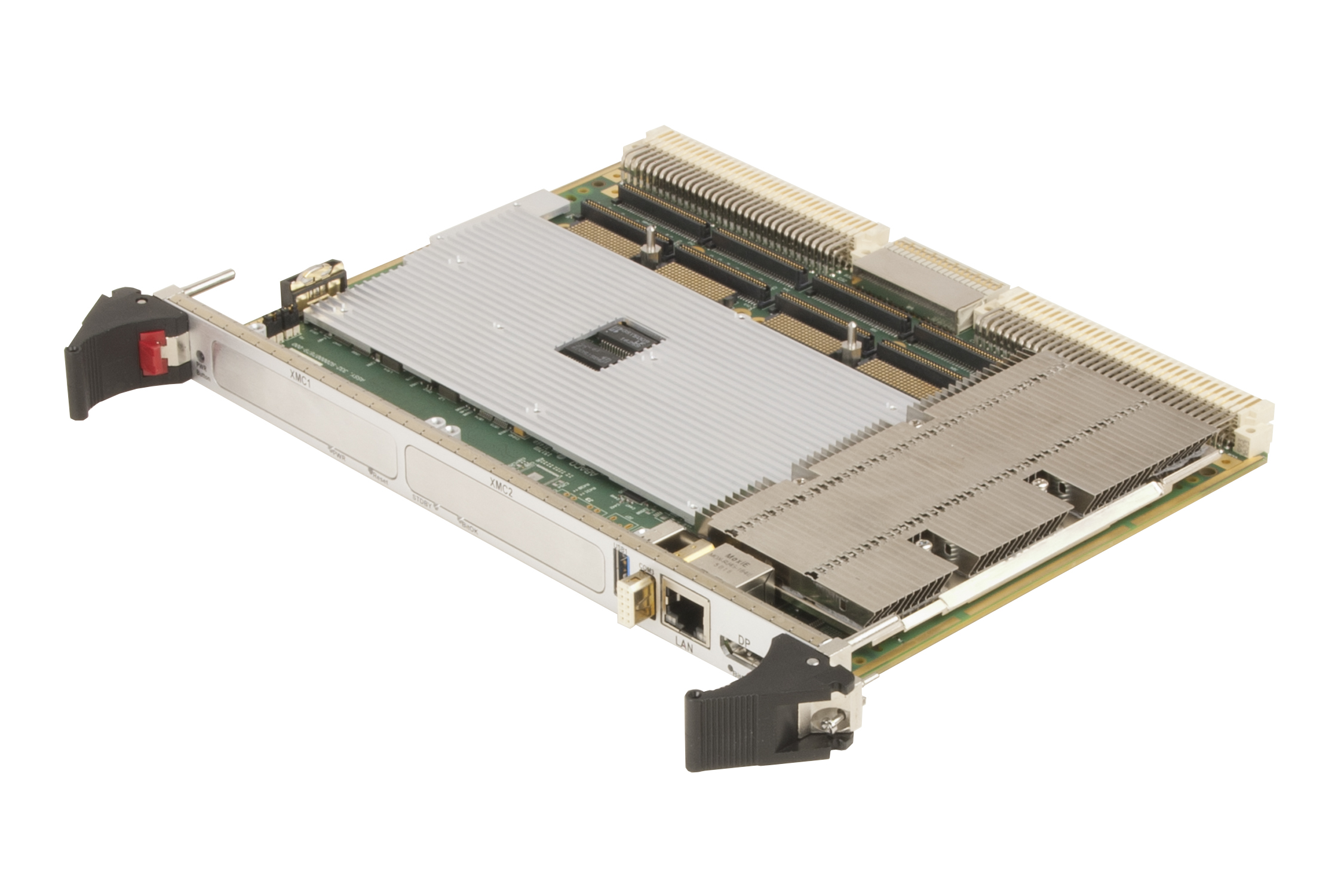

XVR19 6U VME SBC

Rugged single board computer with Intel Xeon E3-1505M v6 processor

XVR19 6U VME SBC

Overview


Established, proven VME roadmaps

The XVR19 provides straightforward, cost-effective and low risk upgrades for users of previous XVR products, bringing enhanced processor performance, enhanced storage and improved protection against obsolescence. They will also be attractive for new programs looking to benefit from Abaco’s established and proven VME roadmaps.

Avoid obsolescense issues

The XVR19 offers the same reliability and stability that typifies VME-based products. Long term availability is assured as a result of utilizing CPUs from Intel’s long term-supported IoT (Internet of Things) roadmap, and Abaco’s new Vivo FPGA-based VME interface which abstracts these products from potential obsolescence issues.

Rugged environments

The XVR19 is a fully rugged offering, with both rugged air-cooled and conduction-cooled versions, targeted at command and control applications typical of the defense and aerospace markets on land, sea and air. Extended longevity is further enhanced by Abaco’s industry-leading Product Lifecycle Management program which plays a key role in Abaco’s strategy of minimizing customers’ long term cost of ownership.

Intel ISA

Intel ISA

Board Support

Highly flexible and configurable to deliver the optimum balance of coverage vs. boot time, our in-house expertise enables us to provide program-specific functionality.

More Details

Specifications

Form Factor
VME 6U
Processor
Intel Xeon E3-1505M, E3-1505L v6
# Expansion Slots
2
Maximum Memory
32 GB DDR4 SDRAM soldered with ECC
I/O
2eSST VME, DisplayPort, DVI, Gigabit Ethernet, GPIO, SATA, Serial, USB
Cooling
Air, Conduction
Serial I/O
3
Mezzanine
2x PMC/XMC
Transition Modules
VTM29
Chip Set
CM238
Other
Up to 64 GB BGA SSD
Operating System (OS) Support
BIOS, Linux, VxWorks, Windows 10
Front I/O
Yes
Rear I/O
Yes
Ruggedization
Level 1-5 Air, Conduction Cooled

Accessories

VTM29 - rear transition module with Mezzio sites

Cooling

When you need maximum compute performance and survivability, you need innovative cooling technologies like heat pipes, Abaco’s Nano Thermal Interface – and more.
