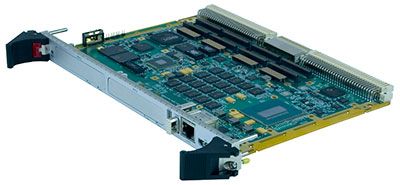

XVR16 6U VME SBC

6U single board computer with 4th Generation Intel Core i7 processor
XVR16 VME SBC

This product entered a Restricted Production Phase (RPP) on November 1, 2021

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

We recommend the following alternative solutions:

Overview

Unmatched bandwidth: onboard and off

The newest Intel technology offers integrated graphics plus a memory controller, with quad-core processing up to 2.4 GHz — all in one device. Coupled with the Intel QM87 Express Chipset this provides an unmatched level of I/O bandwidth for both on-board and off-board functions.



Rugged

The XVR16 doesn’t stop at existing command / control applications, but deploys in more demanding High Performance Embedded Computing (HPEC) signal processing applications, such as ISR (intelligence, surveillance and reconnaissance), sonar and radar.



Drop in the replacement. Step up the performance.

The XVR16 rugged VME single board computer provides a straightforward, cost-effective upgrade / technology insertion path. Existing users of the XVR14 and XVR15 get significantly more processing power, graphics performance, functionality and I/O capability — all within the same power envelope as its predecessors.











Specifications

AXIS Support
Yes
Bus Interface Chip
Tundra Tsi148
Ethernet
Gigabit Ethernet
Form Factor
VME 6U
Maximum Memory
Up to 16 GB DDR3 SDRAM
Mezzanine
2x PMC/XMC
Other
Offers integrated graphics plus a memory controller, with quad-core processing up to 2.4 GHz — all in one device
Processor
4th Gen. Intel Core i7 quad-core up to 2.4 GHz
Ruggedization
Level 1-5 Air, Conduction Cooled
Serial I/O
3
Transition Modules
VTM26

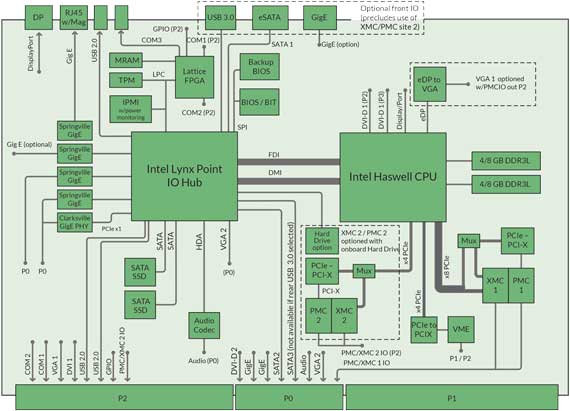

Block Diagram
