XVB602 VME SBC

6U single board computer with Intel Core i7 processor

XVB602 VME SBC

We recommend the following alternative solutions:

Overview


Reliable VME form factor

Continuing the long and reliable service expected from the VME form factor, the XVB602 VME single board computer (SBC) provides high performance computing in general purpose industrial and commercial system-level applications.

Flexible configuration

Intel’s Core i7 processing technology offers integrated graphics and memory controller plus dual core processing all in one device. With the inclusion of dual on-board expansion slots, the XVB602 provides customers with access to a broad range of options for I/O, communications and other capabilities in a single-slot solution. To provide further customer-defined I/O capabilities, the XVB602 carries a board-to-board connector for the EXP237 XMC/PMC carrier/IO expansion board, which offers three additional PCI-X XMC/PMC expansion sites. Designed to meet the requirements of a wide range of industrial applications, the XVB602 offers extended temperature capability in two air cooled build levels.

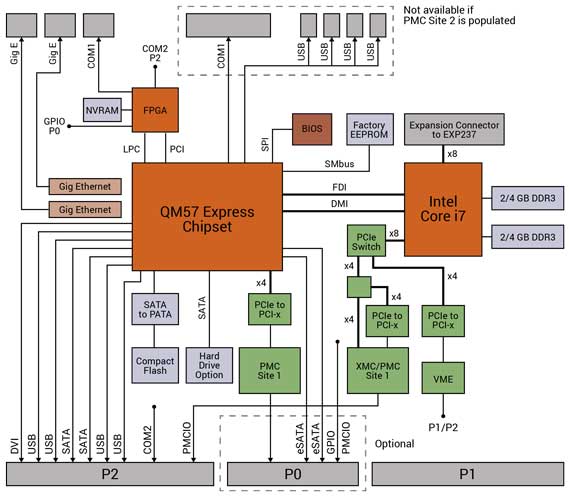

Block Diagram

Specifications

Form Factor
VME 6U
Processor
Intel Core i7 up to 2.53 GHz
Maximum Memory
8 GB DDR3 SDRAM with ECC
Serial I/O
2
Mezzanine
2x PMC
Transition Modules
ACC-0627
Bus Interface Chip
Tundra Tsi148
Ethernet
Gigabit Ethernet
Other
3x additional mezz site via EXP237
AXIS Support
Yes
Ruggedization
Extended temperature, Level 1 Std. Air Cooled

Accessories

ACC-0603 - Rear Transition Module (RTM).

ACC-0627 - Rear Transition Module (RTM) with P0 to offer option loading of the PIM connectors, includes optional P0 connector and SATA re-drivers, and adds two more USB connectors to the front panel.

EXP237-300000 - VME SBC Carrier Card to offer three additional XMC/PMC expansion sites via an on-board x8 connector.
