XVB601

This product is no longer recommended for new designs.

Product configuration is currently frozen and no further design modifications are planned. We offer a comprehensive suite of Lifecycle Management services for existing customers. If you have any questions, please contact us.

We recommend the following alternative solutions:

XVB603 VME SBC

Meet the computing needs of demanding industrial applications with a 6U VME Intel-based embedded computer

Learn More

Overview

See XVB602 VME Single Board Computer as our recommended replacement product.

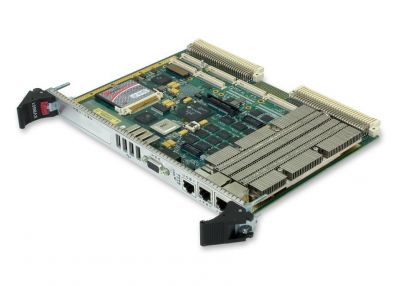

The XVB601 VME Single Board Computer (SBC) from Abaco Systems features the highly integrated Core i7 processor platform from Intel. Core i7 offers integrated graphics and memory controller plus dual core processing up to 2.53 GHz. Coupled with the Mobile Intel QM57 Express Chipset this provides an unmatched level of I/O bandwidth for both on-board and off-board functions.

Features of the XVB601 VME SBC's Core i7 processor:

• Intel Intelligent Power Technology allows processors to operate at optimal frequency and power

• Intelligent performance on-demand with Intel Turbo Boost Technology

• Multi-level shared cache improves performance and efficiency by reducing latency to frequently used data

• Hyper-Thread Technology – 2 threads per core

• Streaming SIMD extensions 4.1/4.2

The XVB601 offers two on-board mezzanine expansion sites for enhanced system flexibility, one of which is PMC/XMC capable and one of which is PMC only.

The XVB601 VME SBC provides further customer defined I/O capabilities with the board-to-board connector for the EXP237 XMC/PMC carrier/IO expansion board, which offers customers three additional PCI-X XMC/PMC expansion sites to utilize.

6U VME SBC
Intel Core i7 Processor up to 2.53 GHz
Up to 8 GB soldered DDR3 SDRAM with ECC
Mobile Intel QM57 chipset
2x on-board Expansion sites
2x Gigabit Ethernet
Extended op. temperature

Specifications

Form Factor

VME 6U

Processor

Intel Core i7 up to 2.53 GHz

# Expansion Slots

Maximum Memory

8 GB DDR3 SDRAM with ECC

Serial I/O

Transition Modules

ACC-0627

Bus Interface Chip

Tundra Tsi148

Ethernet

Gigabit Ethernet

Ruggedization

Level 1 Std. Air Cooled

Accessories

ACC-0627-000000 - Rear Transition Module (RTM) with P0 designed to transition the XVB601 I/O signals from the VME P2 and optional P0 to standard I/O connectors.

ACC-0627-100000 - Rear Transition Module (RTM) without P0 designed to transition the XVB601 I/O signals from the VME P2 to standard I/O connectors.

EXP237-300000 - VME SBC Carrier Card to offer three additional XMC/PMC expansion sites via an on-board x8 connector.
