PowerXtreme PPC10A SBC
Rugged 6U VME single board computer with QorIQ Power Architecture
This product is no longer recommended for new designs.
Product configuration is currently frozen and no further design modifications are planned. We offer a comprehensive suite of Lifecycle Management services for existing customers. If you have any questions, please CONTACT US. To see all end of life products CLICK HERE.
We recommend the following alternative solutions:
PPC11A Rugged 6U VME Single Board Computer
QorIQ T2081/T1042-based single board computer designed specifically for harsh environments
Learn MoreOverview
Eight cores of processing power
Built around the Power Architecture QorIQ P4080 8-core processor, the PPC10A rugged 6U VME single board computer provides a significant increase in high performance computing while operating within the power envelope of its predecessor, the dual core PPC9A. This allows more throughput per slot and enables existing systems to be deployed in a smaller space, saving size and weight. The PPC10A supports both symmetric- and asymmetric multiprocessing.
Ready and Able
While the PPC10A’s high performance computing capabilities makes it ideal for the most demanding applications, its five levels of ruggedization enable it to operate in any environment from office/benign to harsh. It also offers significant flexibility with a diverse I/O set that includes XMC/PMC expansion sites and an AFIX (Additional Flexible Interface Extension) site that accommodates almost any customer application. AFIX optionally features a range of capabilities including SCSI, VGA/graphics, digital I/O, 1553 and Flash drive, as well as being open to customer-specific variants.

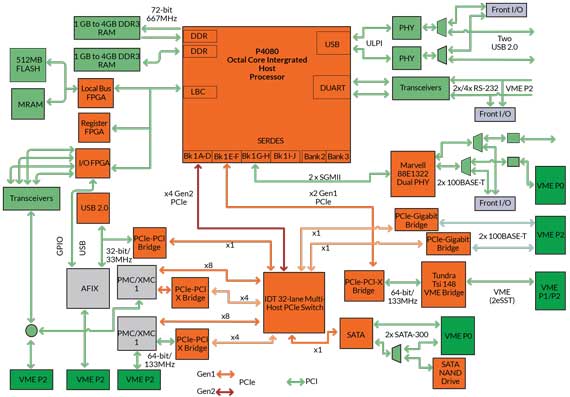

Block Diagram
Specifications
Accessories
P25X606B-11200 - P2 Rear Transition Module (RTM) for PPCx series cards (Harting Connector)
P25X606D-12200 - P2 Rear Transition Module (RTM) for PPCx series cards (ERNI Connector) with AFIX I/O header
P25X606G11200-X - P2 Rear Transition Module (RTM) for PPCx series cards (ERNI Connector) with 2x USB 2.0 sockets (RoHS)
PP9BFIO-11 - Front I/O Breakout Panel
P09AIO-11 - Module is a customised interface adapter, compatible with Type B P0 connectors. It fits directly onto the rear P0 position of the backplane and is suitable for interconnection with PPC9A host processor card.
Downloads
Manuals
- BIT V4 User Guide
- Board Management Microcontroller Software Reference Manual
- Creating an Abaco BSP-based VxWorks Bootrom Application Note
- Creating an Abaco BSP-based VxWorks Kernel Image Application Note
- FBIT for PPC10A Software Reference Manual
- I/O Modules Hardware Reference Manual
- LynxOS ESP Software Reference Manual
- P0P2X605 Backplane Module Manual
- PMC Installation Guide
- PMC Installation Note
- PMCBIT Programming Software Reference Manual
- PowerX Quick Start Guide
- PowerX Range of Single Board Computers Hardware Reference Manual
- PowerX User Guide
- PPC10A Hardware Reference Manual
- Trusted Boot on PPC10A Application Example
- U-Boot Firmware User Guide
- VMICACC-0562/ACC-0562RC Installation Guide
- VxWorks BSP for PPC10A HTML Pages
- VxWorks ESP for PPC10A HTML Pages
- VxWorks VME Shared Memory Networking Application Note
- Wind River Hypervisor for Abaco Power Architecture-based SBCs
- Workbench/Platforms/VxWorks6 BSP Installation on PowerPC-based SBCs Software Reference Manual
- Workbench/Platforms/VxWorks6 ESP Installation Software Reference Manual
