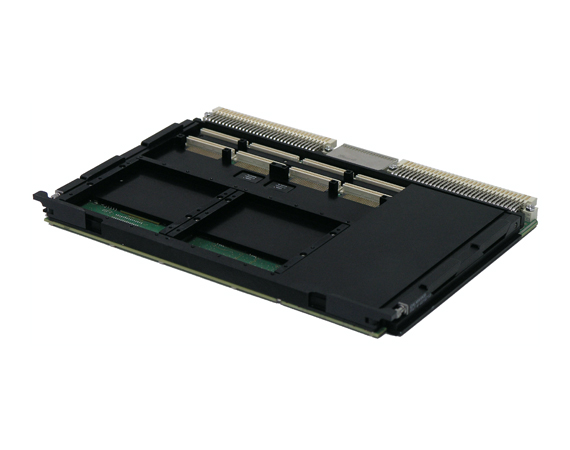

PPC11A Rugged 6U VME Single Board Computer

NXP QorIQ T2081/T1042-based SBC designed specifically for harsh environments
DOWNLOAD DATASHEET
REQUEST A QUOTE
Overview
Specifications
Block Diagram
Downloads
Request A Quote
Contact An Expert
Get Support

Overview

Technology insertion roadmap minimizes integration effort

The PPC11A supports the same technology insertion pin-out as previous members of the PowerXtreme family including popular boards such as the PPC4A, PPC7A, PPC9A and PPC10A, minimizing integration time and effort for legacy upgrades.


Power/performance options offer optimum application effectiveness

The PPC11A offers a high performance option based on NXP QorIQ T series processors, allowing the user to select a solution tailored to the application.


Application Centric

The PPC11A ensures long term support through an industry-standard Universe IID VME interface. Fully rugged by design, the PPC11A offers flexible I/O configurations to satisfy a wide range of application requirements.



10 SBC questions to ask

Not all single board computers are created equal. Find out more about how your current supplier’s offering compares with Abaco’s.

GO TO QUESTIONS

Specifications

Ethernet
Gigabit Ethernet
Form Factor
VME 6U
I/O
COM, Gigabit Ethernet, GPIO, SATA, Serial, USB
Maximum Memory
8 GB DDR3 SDRAM with ECC
Mezzanine
2x PMC/XMC
Operating System (OS) Support
Linux, VxWorks
Other
512 MB NOR Flash memory, 32 GB NAND Flash SATA Solid State Drive
Processor
QorIQ T2081 @ 1.8 GHz / T1042 @ 1.4 GHz
Ruggedization
Level 1-5 Air, Conduction Cooled
Serial I/O
8
Transition Modules
P25X606G

Cooling

When you need maximum compute performance and survivability, you need innovative cooling technologies like heat pipes, Abaco’s Nano Thermal Interface – and more.

More Details

Block Diagram

ppc11a-diagram.jpg ppc11a-diagram.jpg
