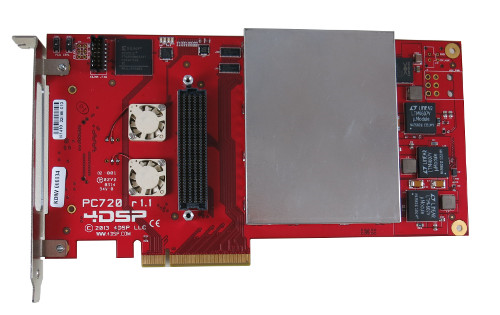

PC720 FPGA Card

PCIe with Virtex-7

PC720

Overview


The PC720 is a high-performance, half-size PCI Express card with advanced digital signal processing (DSP) capabilities and multiple I/O options. It offers various direct on-board interface options (2x FMC sites) that are closely coupled to the Kintex-7 and 1GB of DDR3 SDRAM.

With on board fans available to dissipate heat from the FMC site and the Kintex-7, this product remains cool in any enclosure.

It is an excellent choice for high performance applications that require large band signal digitization or generation through the use of accelerated frequency-domain algorithms or video applications that are bandwidth-hungry.

Board Support Package

Our Board Support Package helps customers get their hardware implementation underway as quickly as possible by providing reference designs, the Stellar IP FPGA development tool, and the 4FM GUI user interface for controlling and monitoring the hardware, as well as other supporting elements.

Specifications

Form Factor
PCI Express
I/O
Configurable using FMCs
Mezzanine
1x HPC FMC, 1x LPC FMC
Memory
1 GB DDR3 SDRAM
FPGA Family
Kintex-7
