NIC10GBT Network Interface Card

Dual 10GBase-T XMC card with Rear I/O

NIC10GBT Dual 10GBase-T XMC Card with Rear I/O

10GBase-T expandability

The NIC10GBT is a dual port 10GBase-T XMC module that brings 10GbE expandability to new and existing embedded systems with available XMC slots.

Advanced networking capabilities

Featuring the Intel x540 10GbE controller, the NIC10GBT supports flow control, integrated IPsec security engines, optimized queues, IPv6 offloading, advanced filtering capabilities, and Tx/Rx IP, TCP and UDP checksum offloading capability.

Flexibility. Scalability.

Designed for both new and legacy network architectures, the NIC10GBT will auto-negotiate between 100Mbps, 1Gbps and 10Gbps speeds and connects to host platforms via a PCI Express Gen 2 interface supporting x1, x2, x4 or x8 lane widths. The NIC10GBT is a standard, single width VITA 42.0 XMC-compliant board and includes VxWorks, Windows and Linux drivers.

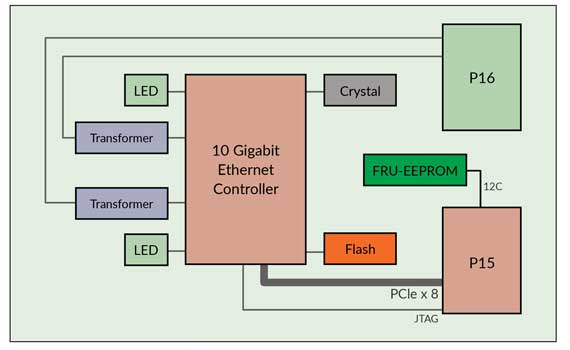

Block Diagram


Form Factor
Port Type
PCI Controller/ Ethernet MAC
Intel X540 Dual 10GbE Controller
Rear Panel I/O Connectors
