5047 MMS ECM, Miscellaneous

(RoHS Compliant Lead-free) Modular Micro Mezzanine System™ Electrical Conversion Module (ECM) Miscellaneous - Socket Saver

Overview

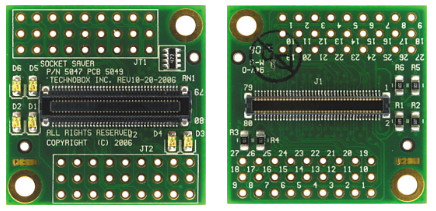

The 5047 provides breakout of all ECM signals for debug, design validation and development. Plated through holes on the PCB allow soldering of probe wires to IO, Data, Power and Serial Identification signals. LEDs indicate presence of 3V, 5V, +12V, -12V and Ground. Elevates the ECM module by 2 mm and saves wear on the ECM carrier board connectors. Since this is a debug too there is no serial identification circuit.

Specifications

Function
Socket Saver and Debug
Technical Parameters
All I/O breakout
Features
Provides breakout of ECM signals for debug and development
