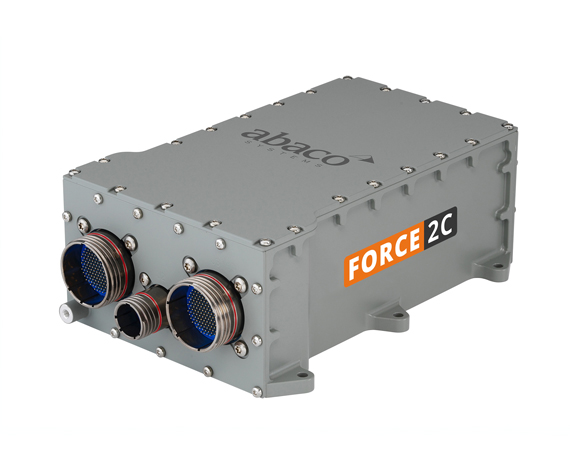

FORCE2C Flight Certifiable Mission Computer

Rugged LRU with T2081 processor, MIL-STD-1553 and ARINC 429
force2c

Overview

It’s not easy, but we can work with you to make it easier

Don’t let anyone tell you otherwise. Achieving certifiability is a serious business that can involve almost uncountable man hours and dollars. The COTS approach to certifiability is simpler and less expensive than doing it yourself –we’ve invested upfront and will partner with you to make the process more straightforward - and more cost-effective.

FORCE2C – COTS products with added artifacts

That’s right. The FORCE2C is a COTS product designed specifically for certifiability. It builds on our popular COTS products, but comes complete with DO-254 artifacts. No, they’re not everything you’ll need – but they’ll help you get where you’re going faster, and they can be used for multiple programs.

To minimize program risk we worked with a Designated Engineering Representative to audit our process and artifacts throughout the development, so you can integrate our products into your safety-certifiable system with confidence.

DO-254 / DO-178C certification compliant

Offered with artifacts suitable for inclusion in DAL D to DAL A flight systems. Lowering the cost and timescale of flight certifiable systems for our customers via the Abaco investment in certifiable COTS.

Certifiable COTS

LynxOS-178 2.2.4

Wind River & RTI

DDC-I

Leveraging COTS Solutions

We can give you much more than the paperwork

DO-254 and DO-178C artifacts for the FORCE2C are a good start. However, we can also provide you with a service that supports you in your integration of artifacts and in the approval loop for the FAA, EESA or other certification authority. A problem shared is a problem halved.To minimize program risk we have had a Designated Engineering Representative auditing our process and artifacts throughout the development, so you can integrate our products into your safety-certifiable system with confidence.

Safety Certification

To minimize your pain, Abaco has invested in board and sub-system artifacts for certification of flight systems up to DAL A.

More Details

Specifications

Conformal Coating
Yes
Cooling
Conduction
Environmental
MIL-STD-810G, DO-160G, MIL-STD-461G, MIL-STD-704F
Form Factor
3U Boxed, VPX 3U
I/O
ARINC 429, Gigabit Ethernet, MIL-STD-1553, USB, logic level discrete ports, RS-232, RS-422, extended RS-232
Maximum Memory
4 GB DDR3 SDRAM
Operating Temp
-40˚C to +71˚C
Processor
QorIQ T2081 @ 1.8 GHz
Weight lb (kg)
8.3 lbs (3.7 kg)

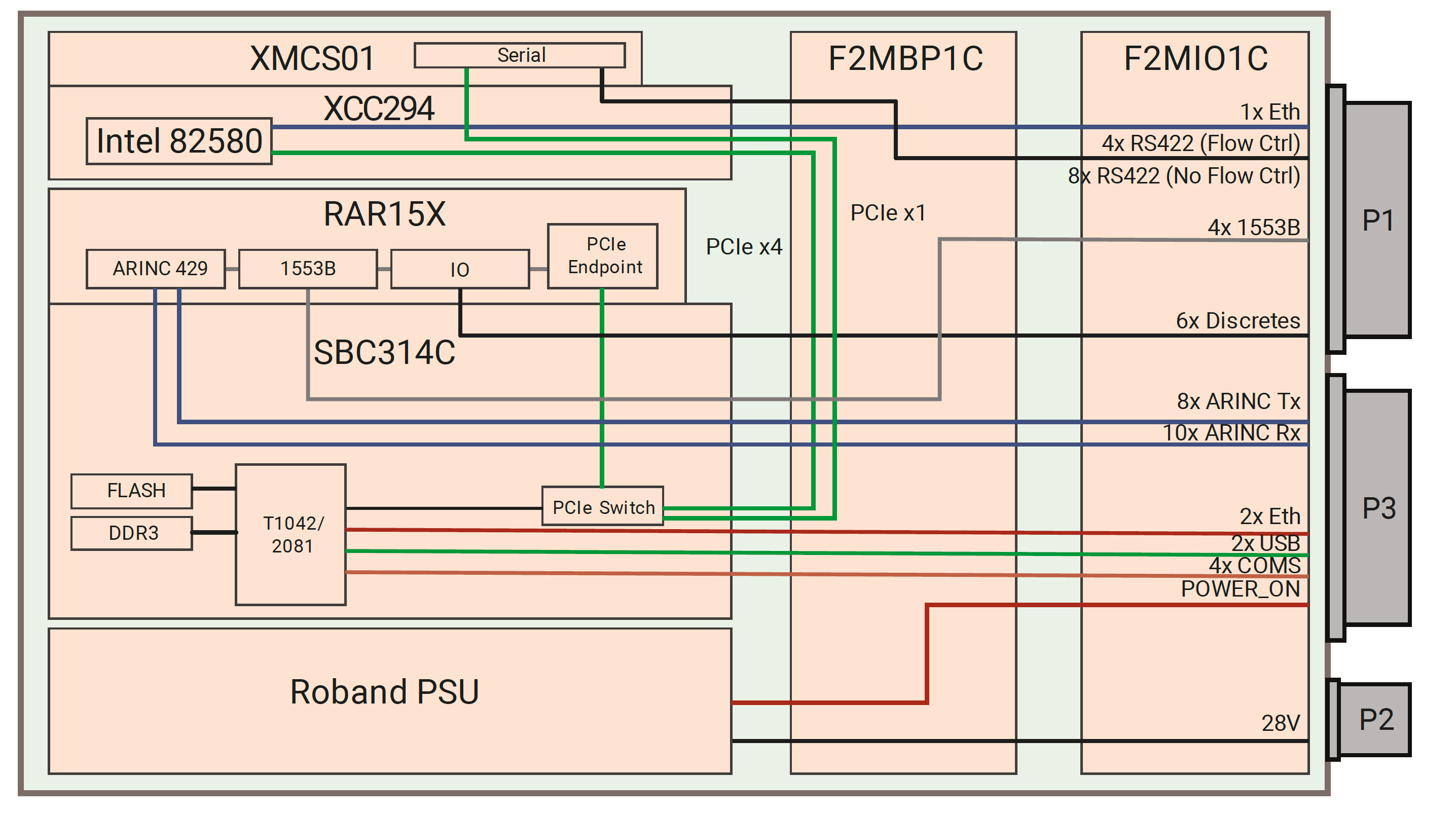

Block Diagram
