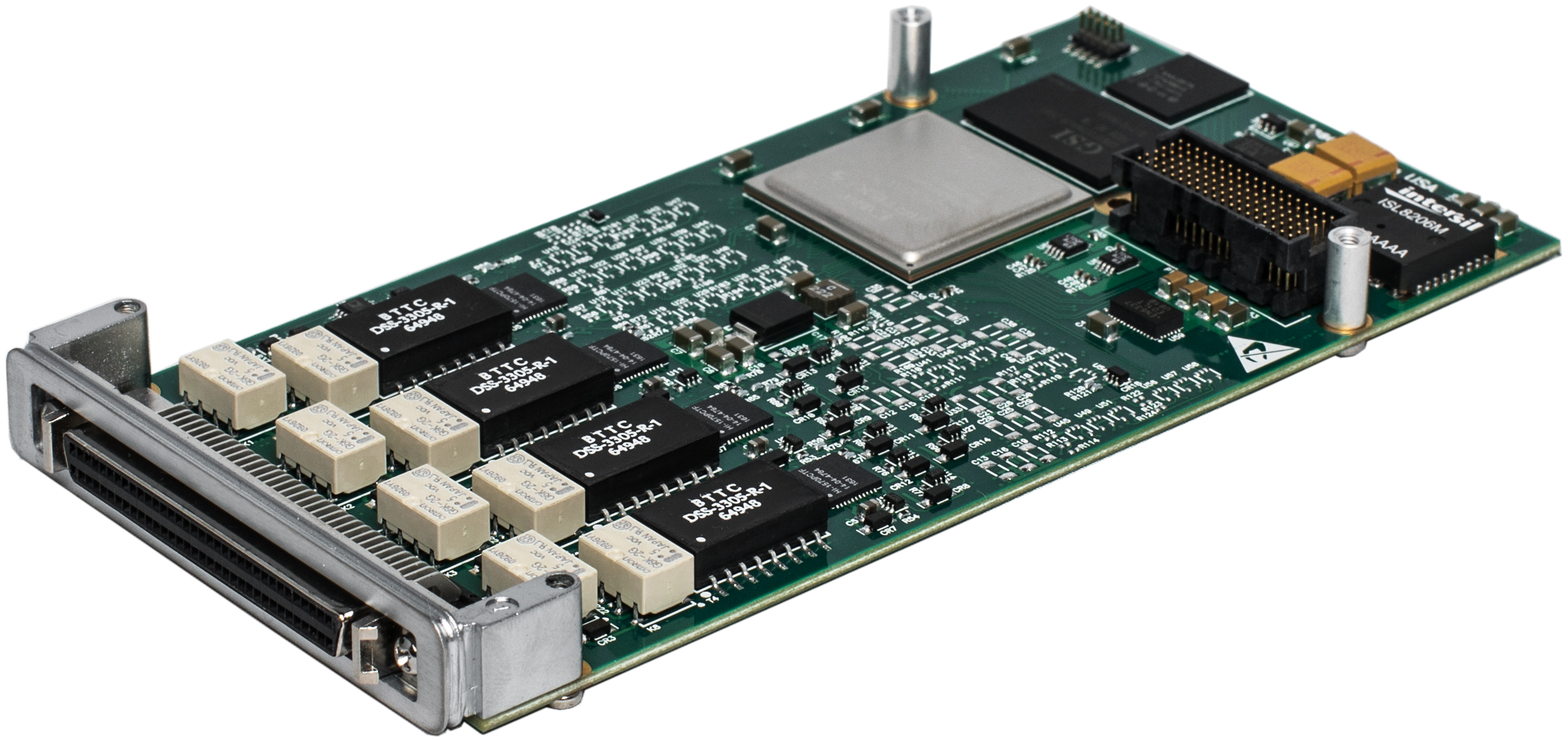

RAR15XF Interface

High Density MIL-STD-1553 and ARINC 429 XMC front I/O module
RAR15XF

Overview

Looking for Thunderbolt 3 device? Click here



ARINC 429 Message Handling

On-board firmware, large data buffers, and a high-level API are integrated to provide total flexibility in monitoring and generating ARINC bus traffic. Simultaneous scheduled and burst mode (FIFO) messaging is supported on all ARINC 429 transmit channels. Each ARINC 429 receive channel provides simultaneous dedicated and buffered mode storage, along with label/SDI filtering.

Three different methods are provided to buffer received messages:

  • Buffered mod­­­­e utilizes a separate circular buffer for each channel.
  • Merged mode combines all received messages into a single, time-sequenced circular buffer
  • Dedicated mode provides a snapshot of the latest message by label or label+SDI

ARINC 429 Architecture

The RAR15XF features include independent, software programmable data rates and parity, error detection error injection. All channels operate independently.

MIL-STD-1553 Multi-function Interface

RAR15XF multi-function interfaces are easily configured to operate with simultaneous bus controller, up to 31 remote terminals and bus monitor functionality.

MIL-STD-1553 Dual-function Interface

Dual-function RAR15XF interfaces have all the features of the multi-function versions, with either bus monitor and bus controller or bus monitor and 31 remote terminals.



Avionics

Abaco provides extensive, in-depth support to avionics designers with a broad and deep line of avionics interfaces, test platforms, tools and software.

More Details

Specifications

# ARINC Channels:
10 Receive, 4-8 Bi-directional
# Discretes:
0, 6, or 12
1553 # Channels:
2 or 4
Analyzer
BusTools
Application
Lab, Simulation, Test
Form Factor
XMC, Thunderbolt 3
IRIG Time Code Option
Yes
Operating Mode
Dual/Multi-Function
Protocol
ARINC 429, MIL-STD-1553
Temp Range
Commercial XT
