This product reached the end of its lifecycle (end-of-life) on August 30, 2013

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.

We recommend the following alternative solutions:

Overview

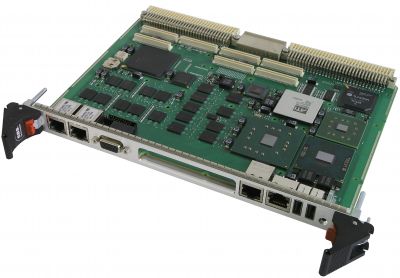

Based on the Intel Core Duo Processor, the Intel-based SBC is designed to support processor speed from 1.66 GHz up to 2.0 GHz. The Intel Core 2 Duo runs at 1.5 GHz. VP11 6U VME SBC is offered in a dual slot wide front panel in order to maximize front I/O functions. The VP11 provides a unique feature set, including up to 4 GB of DDR2 SDRAM (200 MHz) with enhanced ECC, four independent on-board PCI buses, support for VME64/2eSST backplane, two PMC interfaces (64-bit/133 MHz and 32-bit/33 MHz). Instead of the PMC1, a PCI Express based XMC interface is optionally available. A high level of functional integration (two Gigabit Ethernet, one Fast Ethernet, two serial interfaces (RS-232 or RS-422/485), USB 2.0, integrated HDD or Flash drive) within a single slot gives users the freedom to use the PMC interfaces for their high performance computing application specific I/O. The VGA/DVI interface is supported through a high performance 2D/3D ATI® video controller capable of driving two displays in parallel.





  • 6U VME SBC
  • p to 4 GB DDR2 SDRAM w/ ECC
  • 2x PMC expansion site, with one XMC optional
  • Intel Core 2 Duo @ 2.16 GHz, Intel Core Duo @ 2.0 GHz
  • 2x Gigabit Ethernet





Intel ISA

Intel ISA

Specifications

Form Factor
VME 6U
Processor
Intel Core Duo @ 2.0 GHz
# Expansion Slots
3
Maximum Memory
4 GB DDR2 SDRAM with ECC
Serial I/O
2
Bus Interface Chip
Tundra Tsi148
Ethernet
Gigabit Ethernet
Ruggedization
Level 1 Std. Air Cooled
