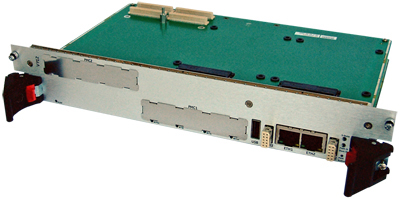

VP12 VME SBC

Rugged 6U single board computer with Intel Core i7 processor

Intel ISA

Intel ISA

Overview


Rugged, reliable VME form factor

Continuing the long and reliable service expected from the VME form factor, the VP12 dual slot VME single board computer (SBC) provides rugged, high performance computing in demanding applications such as radar processing and flight control as well as in general purpose industrial and commercial system-level applications.

Flexible configuration

Intel’s Core i7 processing technology offers integrated graphics and memory controller plus dual core processing all in one device. With the inclusion of two XMC expansion sites, the VP12 provides customers with access to a broad range of options for I/O, communications and other capabilities in a dual-slot solution. Designed to meet the requirements of a wide range of applications from industrial through to fully rugged defense and aerospace programs, the VR12 offers extended temperature capability and a range of air- and conduction cooled build levels for optimum rugged computing.

Board Support

Highly flexible and configurable to deliver the optimum balance of coverage vs. boot time, our in-house expertise enables us to provide program-specific functionality.

More Details

Specifications

Form Factor
VME 6U
Processor
Intel Core i7 up to 2.53 GHz
Maximum Memory
8 GB DDR3 SDRAM with ECC
Serial I/O
3
Mezzanine
2x PMC/XMC
Transition Modules
VTM24
Bus Interface Chip
Tundra Tsi148
Ethernet
Gigabit Ethernet
AXIS Support
Yes
Ruggedization
Extended temperature, Level 1-2 Air Cooled

Accessories


VTM24A0MA with SATA drive - 6U x 80 mm Rear Transition Module (RTM) with DVI or VGA connector which can be used for monitor connection.

VTM24A10A - 6U x 80 mm Rear Transition Module (RTM) with DVI or VGA connector which can be used for monitor connection.
