VG5

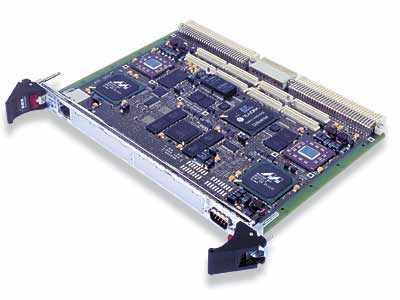

6U VME Dual Power Architecture Single Slot CPU board

VG5

This product reached the end of its lifecycle (end-of-life) on July 31, 2012

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.

We recommend the following alternative solutions:

Overview


A 6U Power Architecture VME SBC with flexible DDR SDRAM and flash configurations and an array of on-board peripherals, all in a single slot, provide high performance computing to embedded applications. Up to two Gigabit and two 10/100 Mb Ethernet ports, up to four high speed multi-protocol serial controllers (HDLC, Bisync,..) one serial ATA port, two PMC expansion slots, UARTS, timer/counter and general purpose I/Os. This product is available as a single or dual single board computer. Each processor node on the board has its own DDR-SDRAM bank and its own chipset with peripherals (Asymetric Multiprocessing). The VG5 is also available in a conduction cooled version for rugged computing applications. The VG5 contains an FPGA with a user-reserved area, which allows the user to program application specific I/O functions. AltiVec is supported.



  • 6U VME SBC
  • MPC7457 Power Architecture processors with AltiVec technology
  • 2 MB L3 Cache, up to 1.267 GHz
  • Two PMC slots
  • Integrated Gigabit Ethernet and Fast Ethernet ports
  • Commercial and conduction cooled versions
  • Asymmetric Multiprocessing Architecture (ASMP)
  • VTM20 Rear Transition Module
  • For Ruggedization Levels, please see the configuration guide under the downloads tab

Specifications

Form Factor
VME 6U
Processor
Up to 2x MPC7457 up to 1267 MHz
# Expansion Slots
2
Maximum Memory
2x 512 MB SDRAM with ECC
Serial I/O
6
Transition Modules
VTM20
Bus Interface Chip
Tundra Universe IID
Ethernet
Gigabit Ethernet
Ruggedization
Level 1-2 Air Cooled

Accessories

VTM2010001, with full PMCIO2 and no GPIO, is a Rear Transition Module (RTM) designed to route I/O signals from the VG5 to interface to external peripherals. The 6U x 80 mm rear I/O module must be plugged into the VG5 slot with the backplane in between.

VTM2011001, with GPIO and partial PMCIO2, is a Rear Transition Module (RTM) designed to route I/O signals from the VG5 to interface to external peripherals. The 6U x 80 mm rear I/O module must be plugged into the VG5 slot with the backplane in between.
