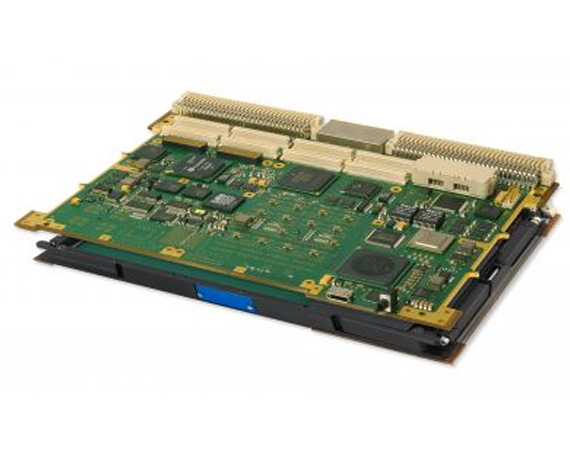

PowerXtreme PPC9B SBC
6U VME single board computer with Power Architecture QorIQ P2020 processor

Overview
Dual core processor technology
Built around the Power Architecture QorIQ P2020 dual-core processor, the PPC9B rugged 6U VME single board computer provides a higher level of performance than its predecessor yet operates within the same power envelope. This allows more throughput per slot, thus enabling existing systems to do more without compromising current power and space allotments.
A power miser
The PPC9B’s power dissipation of only 20-25 watts makes it smart for rugged, deployed applications where minimal heat dissipation is essential such as sensor fusion and processing, tracking and targeting, weapon guidance and electronic support subsystems. While the PPC9B’s power/heat characteristics make it ideal for thermally challenged applications, its multiple air- and conduction-cooled configurations enable it to operate in a range of environments from office/benign to harsh.
Specifications
Accessories
P25X606D-12200 - P2 Rear Transition Module (RTM) for PPCx series cards (ERNI Connector) with AFIX I/O header
P25X606G11200-X - P2 Rear Transition Module (RTM) for PPCx series cards (ERNI Connector) with 2x USB 2.0 sockets (RoHS)
PP9BFIO-11 - Front I/O Breakout Panel
Downloads
White Papers
Manuals
- AXISFlow Interprocessor Communications Programmer's Guide
- AXISmpi User Guide
- AXISView Applications Software User Guide
- BIT V4 User Guide
- Board Management Microcontroller Software Reference Manual
- Creating an Abaco BSP-based VxWorks Bootrom Application Note
- Creating an Abaco BSP-based VxWorks Kernel Image Application Note
- I/O Modules Hardware Reference Manual
- Linux Software Development Kit Software Reference Manual
- LynxOS ESP Software Reference Manual
- P09AIO RTM Hardware Reference Manual
- P25X606G Rev 7 Backplane Module Manual
- PMC Installation Note
- PMCBIT Programming Software Reference Manual
- PowerX Quick Start Guide
- PowerX Range of Single Board Computers Hardware Reference Manual
- PowerX User Guide
- PPC9B BIT Software Reference Manual
- PPC9B Hardware Reference Manual
- PPC9BFIO Rev3 Breakout Panel
- U-Boot Firmware User Guide
- VMICACC-0562/ACC-0562RC Installation Guide
- VxWorks BSP for PPC9B HTML Pages
- VxWorks ESP for PPC9B HTML Pages
- VxWorks VME Shared Memory Networking Application Note
- Workbench/Platforms/VxWorks BSP Installation on PowerPC-based SBCs Software Reference Manual (M)
- Workbench/Platforms/VxWorks ESP Installation Software Reference Manual
