TS-VID-MP4 Dual input RS-170 video compression module with support for up to D1 resolution video sources using ITU-T H.263 compression algorithm with full quality/bandwidth controls and multi-cast IP video distribution.


This product reached the end of its lifecycle (end-of-life) on July 8, 2011

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.

We recommend the following alternative solutions:

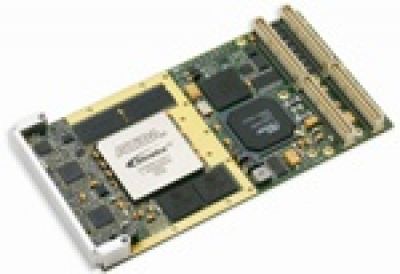

The TS-VID-MP4 delivers a dual input RS-170 NTSC/PAL video capture and compression solution for military and high performance commercial applications in an integrated PMC solution. Using a powerful FPGA processor, with integrated MPEG-4 encoder, this integrated solution is ideal for video data recording, surveillance, UAV operations, reconnassiance and other camera-based applications where video data needs to be transferred on a network.

  • FPGA-based processor delivers flexibilty and extended life cycle
  • Air or conduction cooled solutions
  • Dual input and single output RS-170 video
  • Integrated and tested RS-170 NTSC/PAL video capture and MPEG-4 compression
  • Sensor Processing Resource Center

Article - The UAV Video Problem: Using Streaming Video with Unmanned Aerial Vehicles (Military & Aerospace Electronics July 2009)

Article - Fabric-Based Strategy Doubles Up on UAV Payload Functions (COTS Journal October 2008)

Article - Joint FPGA-DSP Grab, Squeeze, and Send Efforts Sees Video Compression Success (DSP-FPGA.com December 2009)


Form Factor
Air, Conduction
Chip Set
Altera Stratix FPGA
Conformal Coating
Extended Temperature Range


  • TS-DK-ITK - Complete FPGA development kit for use with the TS-Series of FPGA Processors
