SCVPX3UA-12

12-slot 3U VPX Development Chassis
SCVPX3UA-12 3U VPX Starter Chassis (12 slot)

Overview

Flexible, evaluation platform

The SCVPX3UA-12 VPX development chassis provides a flexible, cost-effective platform designed to support Abaco Systems' latest 3U VPX modules. The platform is suitable for software development, integration, and test of VPX board level modules. Abaco Systems’ range of circuit card assemblies (CCAs) are designed for use in a variety of convection, conduction and airflow-through module build styles. System integrators can develop and field-test this platform, secure in the knowledge that the same cards used in the laboratory and field demonstrations can be ordered in different build levels as required to meet the environmental requirements of a range of airborne, ground and naval platforms.

Twelve 3U VPX slot

The SCVPX3U-12 comprises a 12-slot backplane, card cage, PSU, cooling fans, provision for auxiliary storage and all internal power wiring.

Top to bottom cooling

Cooling is by push convection, using fans at the top and bottom of the card cage. Front panel knob adjusts airflow.



Development Systems and Chassis

Our chassis provide you with cost-effective housing for our products – whether your specification calls for a standalone or expansion system.

More Details

Specifications

Application
Development
Cooling
Air
Form Factor
VPX 3U
Height
590.3 mm
Power Supply
1200W
Ruggedization
Commercial (benign), Level 1 Std. Air Cooled
Slots
12
Temp Range
Commercial
Weight lb (kg)
44.1 (20)

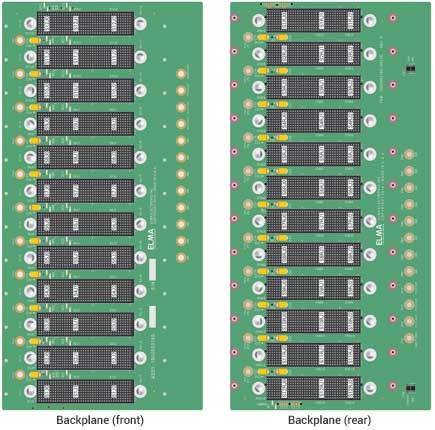

Block Diagram
