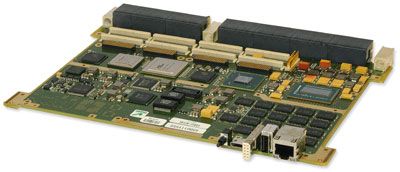

SBC625 6U OpenVPX SBC

Rugged single board computer with 3rd generation Intel® Core™ i7 processor

SBC625 6U OpenVPX SBC

This product reached the end of its lifecycle (end-of-life) on September 9, 2016

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.

We recommend the following alternative solutions:

Overview


Substantially increase output

The SBC625 rugged 6U VPX single board computer, based on 3rd generation Intel® Core™ i7 technology, brings dramatically increased processing power, graphics capability, I/O bandwidth and functional density to customers developing and deploying demanding industrial and mil/aero applications.

One size does not fit all

Abaco Systems’ broad family of SBCs offers an extensive range of price/performance options to create an optimum combination of throughput and cost for a given application. The range of capabilities within the 3rd generation Intel Core processor family gives Abaco Systems the ability to address the diverse performance, heat, power, size and weight requirements found in embedded computing applications.

No hassle upgrade

100% compatible with its predecessors, the SBC625 offers a cost-effective, straightforward upgrade path for existing users to utilize up to 15% greater computational horsepower, and up to 50% improved 3D graphics performance.







Intel ISA

Intel ISA

OpenVPX Logo

OpenVPX Logo

Specifications

Form Factor
VPX 6U
Processor
3rd Gen. Intel Core i7 dual/quad-core up to 2.5 GHz
# Expansion Slots
2
Maximum Memory
Up to 16 GB DDR3 SDRAM
AXIS Support
Yes
Expansion Plane
PCIe
Control Plane
1000BASE-T / 1000BASE-BX
Data Plane
10GigE/DDR InfiniBand
Management Plane
IPMI (Baseboard Man. Controller)
Ruggedization
Level 1-5 Air, Conduction Cooled

Accessories

VPX6UX604-111 - Rear Transition Module (RTM) with 0.8" pitch mechanics allows access to the SBC625 rear I/O by terminating the signals into industry standard connectors.

VPX6UX604-113 - Rear Transition Module (RTM) with 1" pitch mechanics allows access to the SBC625 rear I/O by terminating the signals into industry standard connectors.

VPX6UX605-1103 - Rear Transition Module (RTM) with 1" pitch mechanics allows access to the SBC625 rear I/O including USB 3.0 by terminating the signals into industry standard connectors.

SCVPX6U - The 6U OpenVPX Starter chassis is a rack mountable lab chassis designed to support fast prototyping of multi-board 6U OpenVPX systems.
