PowerPact3 IMP2B

CompactPCI SBC with Freescale Power Architecture 7448 processor

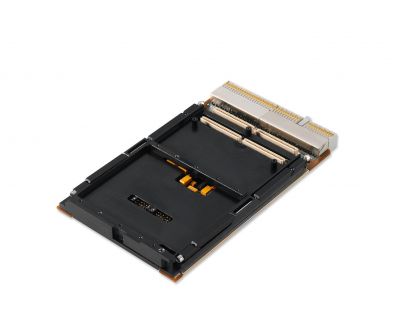

PowerPact3 IMP2B CompactPCI Single Board Computer

This product reached the end of its lifecycle (end-of-life) on August 31, 2015

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

We recommend the following alternative solutions:

Overview


When SWaP is important

Designed for demanding applications with restricted dimensional requirements, the IMP2B packs a powerful CompactPCI single board computer into an extremely space-efficient 3U form factor. The IMP2B's processing core is based around a Freescale 7448 Power Architecture processor and a Marvell Discovery V Integrated System Controller which combines high bandwidth memory control and PCI bridging with an array of communication peripherals, all on a single chip.

When rugged is a must

Available in air- and conduction-cooled build levels for rugged computing, the IMP2B is fully supported by comprehensive Deployed Test Software (BIT and BCS) and includes support for popular real time operating systems including VxWorks.

Specifications

Form Factor
cPCI 3U
Processor
7448 @ 1.4 GHz
# Expansion Slots
1
Maximum Memory
1 GB DDR SDRAM with ECC
Serial I/O
2
Bus Interface Chip
Marvell Discovery 3
Ethernet
Gigabit Ethernet
Other
AXIS Support
System/ Peripheral
Both
Ruggedization
Level 1-5 Air, Conduction Cooled

Accessories

Transition module: CPCI3UX606-11 - Module is a customized interface adapter, compatible with 3U CompactPCI backplanes. It fits directly onto the rear P2 position of the backplane and is suitable for interconnection with the PowerPact IMP3A host card.

Transition module: IMP-IOKIT3 - I/O kit to support the IMP3A comprises the following components:

  • 1x IMP3A Rear I/O paddle card (CPCI3UX606-11)
  • 1x 3U Serial I/O Panel with 2 x 9 Way D type connectors and 0.5 internal ribbon cable. For use with COM 1 and COM 2 port. (SIOX600-S)
  • 1x 2 way shielded 3U 10/100/1000BaseT Panel supplied with two 0.5m CAT5e shielded cables for use with all 10/100BaseT and 10/100/1000BaseT capable product (10BT2X600-STP)
  • 1x Type A USB2 plug to Type A USB2 socket panel mount x 2 on a 3U plate (USBX607-11)



Last Time Buy announced August 31, 2015 for the CPCI3UX605-11 - Module is a customized interface adapter compatible with 3U CompactPCI backplanes. It fits directly onto the rear P2 position of the backplane and is only suitable for interconnection with the IMP2B host card.

Last Time Buy announced August 31, 2015 for the IMP-IOKIT2B - I/O kit to support the IMP2B comprises the following components:

  • 1x Paddle card supporting all IMP2B I/O. (CPCI3UX605-11)
  • 2x 3U Serial I/O Panels with 1x 25 Way D type connector and 0.5m internal ribbon cable. Complies with RS530 pin out and signal set. Used with COM 1,2 ports. (SIO3X600-S)
  • 1x 3U Serial I/O Panel with 2x 9 Way D type connectors and 0.5 internal ribbon cable. For use with COM 1 port. (SIOX600-S)
  • 1x 2 way shielded 3U 10/100/1000BaseT Panel supplied with two 0.5m CAT5e shielded cables for use with all 10/100BaseT and 10/100/1000BaseT capable product (10BT2X600-STP)
  • 1x 3U panel for 4 USB ports (USBX607-11)
