NIC10G Network Interface Card

Dual port 10GigE network interface card in XMC form factor with front I/O (SFP+) or rear I/O (10GBase-KX4 and 10GBase-CX4).
NIC10G

Overview

Advanced networking capabilities





Featuring the Intel 82599ES dual 10GbE controller, the NIC10G supports flow control, integrated IPsec security engines, optimized queues, IPv6 offloading, advanced filtering capabilities, and Tx/Rx IP, TCP and UDP checksum offloading capability. Also has integrated a PCI Express Gen 2 interface supporting up to 8 lanes.



Flexibility. Scalability.





Designed for both new and legacy network architectures, the NIC10G will auto-negotiate between 100Mbps, 1Gbps and 10Gbps speeds and connects to host platforms via a PCI Express Gen 2 interface supporting x1, x2, x4 or x8 lane widths. The NIC10G is a standard, single width VITA 42.0 XMC-compliant board and includes VxWorks, Windows and Linux drivers.







Specifications

Form Factor
XMC
Front Panel I/O Connectors
SFP+
Media
Copper
PCI Controller/ Ethernet MAC
Intel 82599ES
Port Type
10GigE
Ports
2
Rear Panel I/O Connectors
10GBase-KX4 & 10GBase-CX4

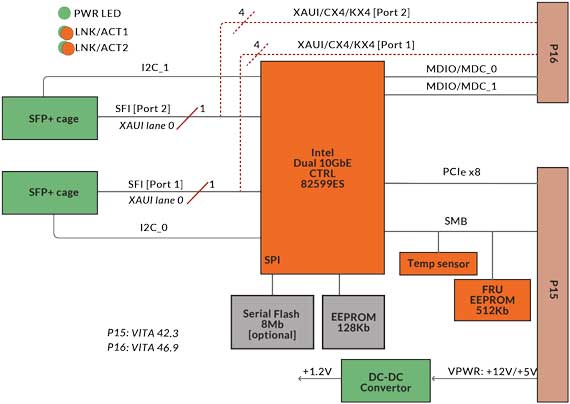

Block Diagram
